Product Information

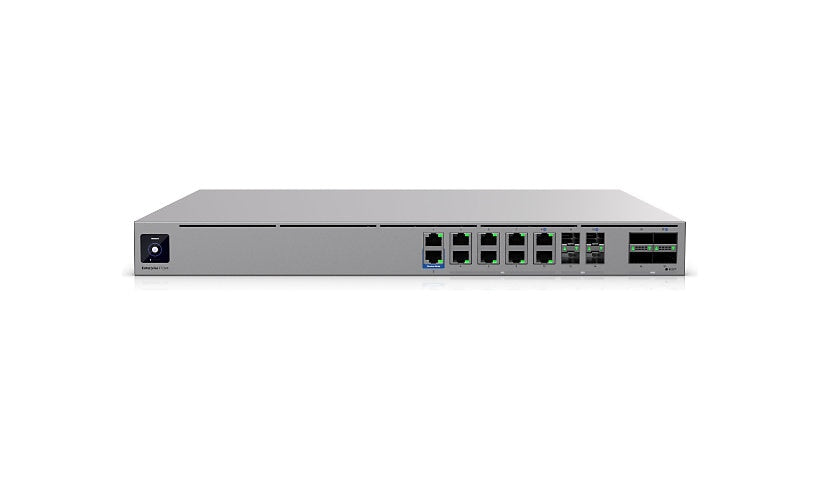

Ubiquiti's UniFi Enterprise Firewall Core is a 1U high capacity UniFi firewall for large sites, rated at 79 Gbps IDS/IPS with up to 10 million concurrent sessions, 120,000 new sessions per second, 5,000 IPsec tunnels and 22,500 simultaneous users. WAN ports include a 40/100G QSFP28, a 1/10/25G SFP28 and a 10G RJ-45, with three 100G QSFP28, three 25G SFP28, seven 10G RJ-45 and two Gigabit LAN ports, plus management and console ports, 32 GB of RAM and a 128 GB SSD.
Key Features
- 79 Gbps IDS/IPS
- 10M concurrent sessions
- 22,500 simultaneous users
- 4 x 100G QSFP28 total
- 32 GB RAM, 128 GB SSD
- 1U rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Enterprise Firewall Core
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, L2TP, OpenVPN, WireGuard
Routing Protocol: BGP, OSPF
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: Concurrent IPSec tunnels: 5000, Concurrent sessions: 10000000, IPS signatures: 95000, MAC address entries: 130000, New sessions per second: 120000, Simultaneous users: 22500, SSL inspection concurrent sessions: 10000
Network Device: IDS/IPS throughput: 79 Gbps
Features: 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Ad blocking, Advanced QoS, Aluminum/steel housing, Application-aware layer 7 firewall, Bluetooth management, Content filtering, DHCP server, DNAT support, DPI & traffic identification, IGMP proxy, Internet quality, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), LACP port aggregation, Multi-WAN load balancing, OpenVPN client, OpenVPN server, Outage reporting, Policy-based WAN, Reset button, SD-WAN support, SNAT support, SSL inspection, Stateful firewall, URL filtering, VPN routing, WireGuard, Zone-based firewall advanced filtering
Connectivity
Interface Provided: 1 x 1/10/25GBase-X - SFP28 (WAN), 1 x 1/2.5/5/10GBase-T - RJ-45 (WAN), 1 x 10/100/1000Base-T (management) - RJ-45, 1 x 40Gb Ethernet/100Gb Ethernet - QSFP28 (WAN), 1 x console - RJ-45, 2 x 10/100/1000Base-T - RJ-45, 3 x 100Gb Ethernet - QSFP28, 3 x 25Gb Ethernet - SFP28, 7 x 10Gb Ethernet - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 2.5 GHZ
RAM Installed: 32 GB
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 1.3" touch screen display, 5 hot-swap fans
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.7 inch
Weight: 17.31 lbs
Included Items
Included Accessories: Mounting kit
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
