Product Information

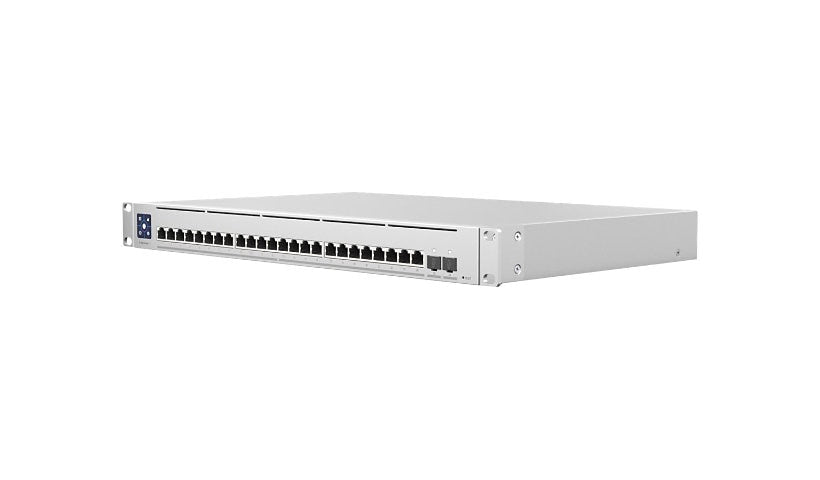

Ubiquiti's UniFi Enterprise XG 24 is a full Layer 3 switch with 24 multigigabit RJ-45 ports (up to 10GbE) and two 25G SFP28 uplinks. The single-row port layout makes patch panel cabling tidy, and a 1.3 inch color touchscreen shows key status. It also accepts DC input from a UniFi USP RPS.
Key Features
- 24 x 100M/1G/2.5G/5G/10G RJ-45 ports
- 2 x 1/10/25G SFP28 uplinks
- 580 Gbps switching capacity
- Layer 3 managed
- 1.3 in color touchscreen
- Rack mount, ears included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Enterprise
Model: XG 24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 431.52 Mpps, Non-blocking switching throughput: 290 Gbps, Switching capacity: 580 Gbps
Features: Firmware upgradable
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 2
Ports Type (2nd): 25 Gigabit SFP28 (uplink)
Interface Provided: 2 x 1/10/25Gbit LAN SFP28 uplink, 24 x 100/1000/2.5G/5G/10GBase-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240/ DC 11.5 volt
Frequency: 50/60 hertz
Power Consumption Operational: 100 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 10.08 lbs
Included Items
Included Accessories: Rack mounting ears
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
