Product Information

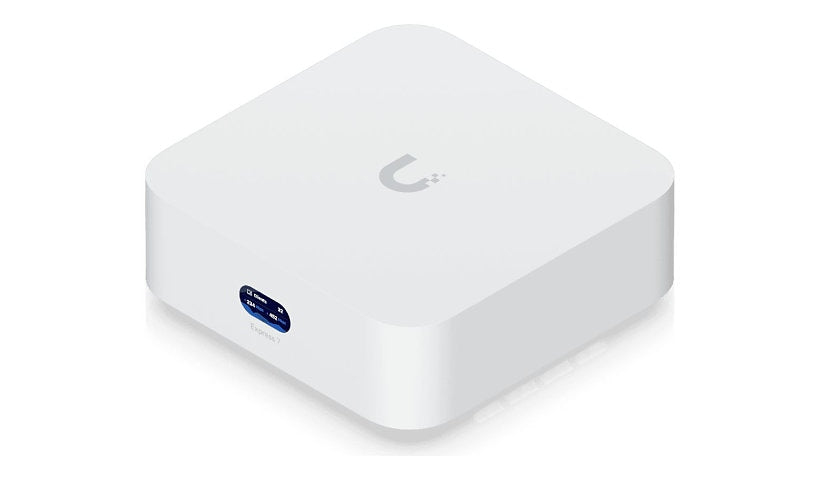

The UniFi Express 7 is a compact desktop gateway with built in tri-band Wi-Fi 7, covering up to about 1,500 sq ft. It has a 10G WAN port and a 2.5G port, a layer 7 firewall, content filtering, VPN support (IPSec, OpenVPN, WireGuard) and 3 GB flash, and can also run in access point mode. This is a gateway router rather than a standalone access point.
Key Features
- Gateway with Wi-Fi 7 tri-band
- 10G WAN + 2.5G port
- Layer 7 firewall, content filter
- IPSec, OpenVPN, WireGuard
- Access point mode
- Up to about 1,500 sq ft
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Express
Model: 7
Product Type: Gateway
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, IPSec, L2TP, OpenVPN, WireGuard
Routing Protocol: IGMP, OSPF
Authentication Method: RADIUS, RADSEC
Encryption: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA3-Enterprise
Capacity: BSSIDs per radio: 4, IPS signatures: 20000, Managed devices: 30, Simultaneous users: 300
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: IDS/IPS throughput: 2.3 Gbps, Maximum throughput (2.4 GHz): 688 Mbps, Maximum throughput (5 GHz): 4.3 Gbps, Maximum throughput (6 GHz): 5.7 Gbps
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Access Point operational mode, Ad blocking, Advanced QoS, Application-aware layer 7 firewall, Content filtering, DHCP server, DNAT support, DPI & traffic identification, Failover backup, Full stateful firewall, Guest Isolation, IGMP proxy, Interrupt status port (ISP), Intrusion Detection System (IDS), Intrusion Prevention System (IPS), mDNS, NAT support, Policy-based WAN, Polycarbonate enclosure, Private Pre-Shared Key (PPSK), Quad-core CPU, RADIUS Server, Reset button, SD-WAN support, SNAT support, Status display, USB-C host charging port, VLAN segmentation, VPN client, VPN routing, VPN Server, VPN support, Zone-based firewall advanced filtering
Connectivity
Interface Provided: 1 x 10 Gigabit Ethernet - RJ-45 (WAN), 1 x 2.5 GBase-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Memory and Processor
Processor Brand: ARM
Clock Speed: 1.5 GHZ
Flash Memory Installed: 3 GB
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Ethernet link/activity
Dimensions and Weight
Height: 1.7 inch
Width: 4.6 inch
Depth: 4.6 inch
Weight: 14.88 ounce
Included Items
Included Accessories: Feet set, Power cable
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.1Q
Warranty
Service Activation: No
