Product Information

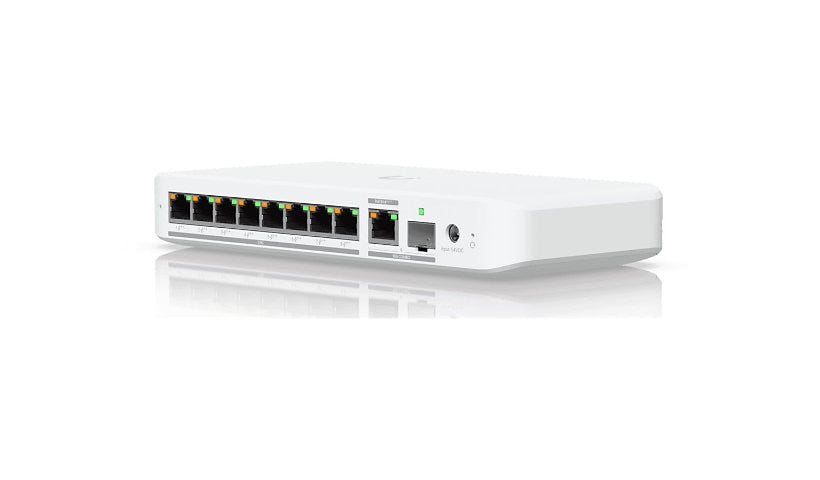

Ubiquiti's Flex 2.5G PoE (USW-FLEX-2.5G-8-POE) gives you a compact managed switch with eight 2.5GbE ports plus one 10G RJ-45 and one 10G SFP+ port. It supports PoE++ and offers 60 Gbps of switching capacity, and it mounts on a desk, wall or DIN rail.
Key Features
- 8 x 2.5GbE RJ-45 ports
- 1 x 10G RJ-45 and 1 x 10G SFP+
- PoE++ support
- 60 Gbps switching capacity
- Managed: port isolation, mirroring, storm control
- Desktop, wall or DIN rail mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Flex 2.5G PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Forwarding rate: 45 Mpps, Non-blocking switching throughput: 30, Switching capacity: 60 Gbps
Capacity: MAC addresses: 4000, VLANs supported: 256
Jumbo Frame Support: Yes
Features: Egress rate limit, Flow control, Jumbo Frames support, Loop protection, Multicast/broadcast rate limiting, Port isolation, Port mirroring, Storm Control
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 2.5GBase-T
Ports (2nd) Quantity: 1
Ports Type (2nd): 10Gb Ethernet
Ports (3rd) Quantity: 1
Interface Provided: 1 x 10Gbit LAN RJ-45, 1 x 10Gbit LAN SFP+, 8 x 2.5Gbit LAN RJ-45
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10Gb Ethernet SFP+
Power
Device Type: External power adapter
Power Provided: 64 watt
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, DIN rail mountable, Wall-mountable
Dimensions and Weight
Height: 1.3 inch
Width: 8.4 inch
Depth: 3.9 inch
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
