Product Information

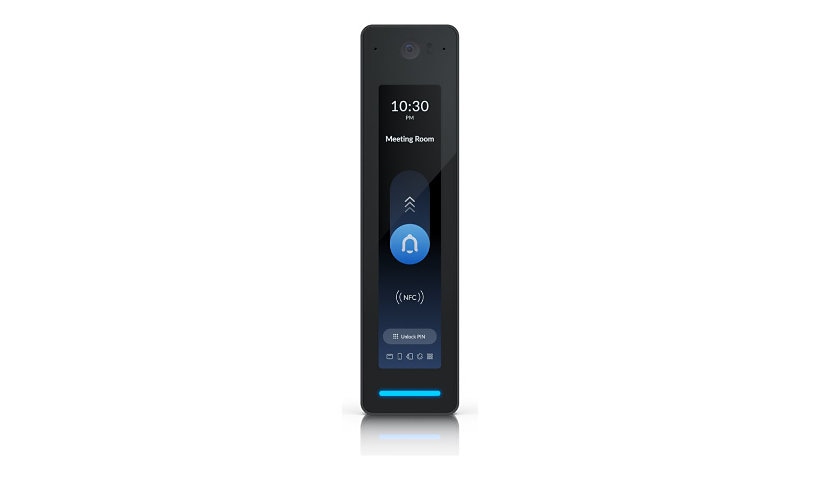

The Ubiquiti UniFi G3 Reader Pro is an access control terminal with a 4.7 inch touchscreen, NFC, MIFARE and Bluetooth 4.2, plus a built in camera, microphone and speaker for intercom style use. It is PoE powered over Gigabit Ethernet, draws 6 W and comes with wall and gang box mounts.
Key Features
- 4.7 inch touchscreen, 1280 x 286
- NFC, MIFARE, Bluetooth 4.2
- Camera, microphone, speaker
- Gigabit Ethernet, PoE, 6 W
- Glass and polycarbonate, black
- Wall and gang box mounts included
Product Information
Brand: Ubiquiti
Product Line: Ubiquiti UniFi
Model: G3 Reader Pro
Product Type: Access control terminal with NFC reader
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Wired Protocol: 10/100/1000 Ethernet
Wireless LAN: Bluetooth 4.2, Mifare, NFC
Frequency Band: 13.56 MHz
Features: LED indicators, Wall Mountable
Connectivity
Power Over Ethernet (PoE): PoE
Power
Power Source: PoE
Power Consumption Operational: 6 watt
Technical Information
Touchscreen: Yes
Integrated Components: Camera, Microphone, NFC reader, Speaker
Display Diagonal Size: 4.7 inch
Display Diagonal Size (metric): 11.9 centimetre
Display Resolution: 1280 x 286 pixels
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Materials: Glass, Polycarbonate
Dimensions and Weight
Height: 6.3 inch
Width: 1.6 inch
Depth: 1.6 inch
Weight: 4.8 ounce
Included Items
Included Accessories: Gang-box mount, Wall mount
Certifications and Listing
Compliant Standards: CAN/ULC 60839-11-1, FCC, IC, IP55, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092, UL 294
