Product Information

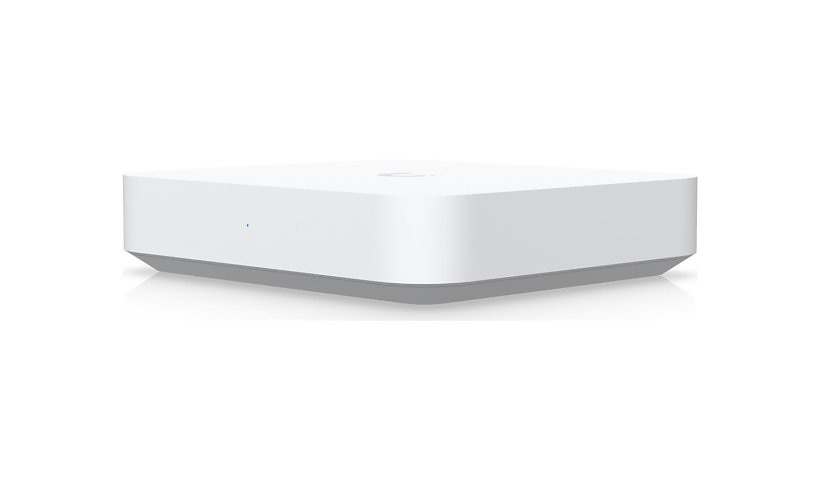

The Ubiquiti UniFi Max is a compact UniFi gateway for homes and small offices, offering up to 1.5 Gbps routing with IDS/IPS. It has one 2.5GbE WAN port and four 2.5GbE LAN ports (one can be remapped to WAN), Bluetooth, 2 GB of DDR4 memory with a 1.5 GHz ARM A53 CPU, in an IK04 rated polycarbonate case, powered by a USB-C adapter and drawing about 9.6 W. It needs a CloudKey, UniFi hosting or UniFi Network Server (version 8.1.113 or later).
Key Features
- Up to 1.5 Gbps with IDS/IPS
- 1 WAN + 4 LAN 2.5GbE
- 2 GB DDR4 RAM
- Bluetooth setup
- USB-C powered
- UniFi Network 8.1.113+
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Max
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Wireless LAN: Bluetooth
Features: CloudKey managed, LED status indicator, Polycarbonate enclosure, Reset button
Connectivity
Interface Provided: 1 x 2.5Gb Ethernet - RJ-45 (WAN), 4 x 2.5Gb Ethernet - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Power Consumption Operational: 9.6 watt
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Clock Speed: 1.5 GHZ
RAM Installed: 2 GB
Memory Technology: DDR4 SDRAM
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Dimensions and Weight
Height: 1.2 inch
Width: 5.6 inch
Depth: 5 inch
Weight: 18.34 ounce
Certifications and Listing
Compliant Standards: FCC, IC, IK04
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
