Product Information

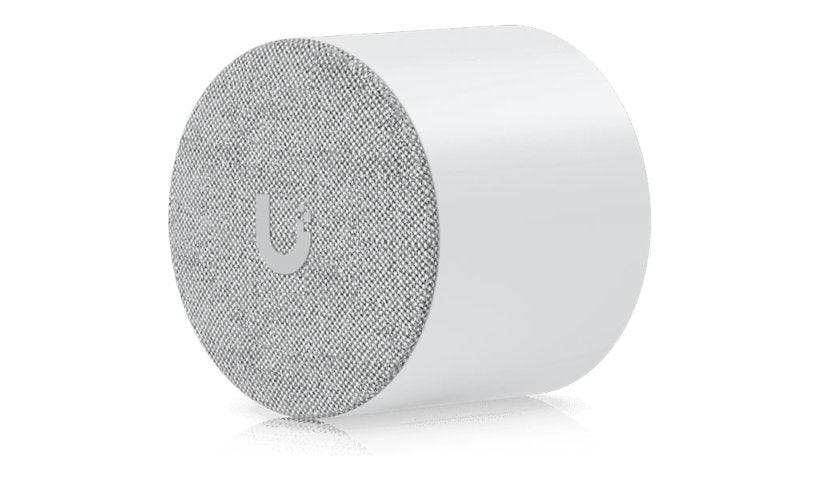

The Ubiquiti UACC-CHIME-POE is an in-wall doorbell chime powered over Ethernet, sounding up to 80 dB through its speaker and buzzer. It draws 3 W, has an LED and reset button, ESD protection and a polycarbonate and aluminum body, and works with Android and iOS. It is a chime, not a card reader.
Key Features
- PoE doorbell chime
- Up to 80 dB
- In-wall mount
- 3 W, 10/100 Ethernet
- ESD protected
- Chime, not a reader
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Product Type: Doorbell chime
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Features #2: In-wall mountable, LED Indicator, Reset button
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Wired Protocol: 10/100 Ethernet
Internet of Things (IoT) Compatible: Yes
Features: 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge)
Features: In-wall mountable, LED Indicator, Reset button
Connectivity
Interfaces: LAN/power
Power Over Ethernet (PoE): PoE
Power
Power Source: PoE
Power Consumption Operational: 3 watt
Technical Information
Touchscreen: No
Supported Host Device Platform: Android, iOS
Integrated Components: Buzzer, Speaker
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Materials: Aluminum alloy, Polycarbonate
Dimensions and Weight
Height: 2.4 inch
Width: 2.4 inch
Depth: 2.1 inch
Weight: 5.57 ounce
Certifications and Listing
Compliant Standards: EAC, FCC, IC, Plug and Play, UKCA, WEEE
