Product Information

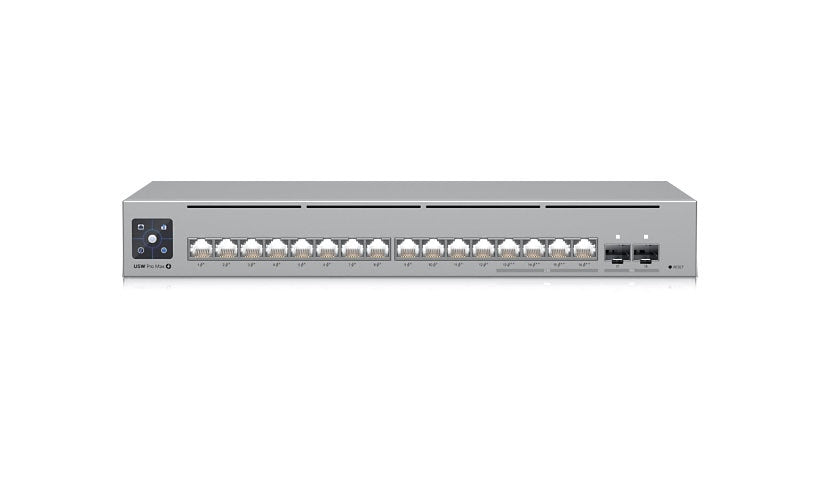

The Ubiquiti UniFi Pro Max 16 PoE is a Layer 3 Etherlighting switch with twelve Gigabit ports, four 2.5GbE ports and two 10G SFP+ uplinks, with PoE+ and PoE++ output from a 180 W budget. The lit ports show location, speed and VLAN, and it fits on a desk or in a rack.
Key Features
- 12 x Gigabit RJ-45 ports
- 4 x 2.5GbE RJ-45 ports
- 2 x 10G SFP+ ports
- 180 W PoE budget (PoE+ and PoE++)
- Layer 3, inter-VLAN routing
- Etherlighting ports
- Desktop or rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Pro Max 16 PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Forwarding rate: 62.496 Mpps, Non-blocking switching throughput: 42 Gbps, Switching capacity: 84 Gbps
Features: 802.1x authentication, Access Control List (ACL) support, DHCP protection, DHCP relay, DHCP snooping, Egress rate limiting, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, Jumbo Frames support, LED status indicators, Link Aggregation Control Protocol (LACP), LLDP-MED, Loop protection, MAC address authentication, Multicast/broadcast rate limiting, PoE+, PoE++, Port aggregation, Port disable, Port isolation, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, Reset button, Static routing, Steel housing, Storm Control, VLAN support, Voice VLAN
Connectivity
Ports: 16
Port Quantity: 12
Port Type: 10/100/1000 (12 PoE+, 4 PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): 2.5GBase-T
Ports (3rd) Quantity: 2
Interface Provided: 12 x 10/100/1000 Base-T RJ-45, 2 x 10GBase-T SFP+, 4 x 2.5GBase-T RJ-45
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10 Gigabit Ethernet
Power
Device Type: Internal power supply
Power Consumption Operational: 30 watt
Power Provided: 210 watt
PoE Budget: 180 watt
Voltage Required AC/DC: DC
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, RPS (Redundant Power Supply), Status
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 12.8 inch
Depth: 6.3 inch
Weight: 4.63 lbs
Included Items
Included Accessories: Power cord
Certifications and Listing
Compliant Standards: IEEE 802.1x
Compliant Standards: FCC, IC, SGCC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
