Product Information

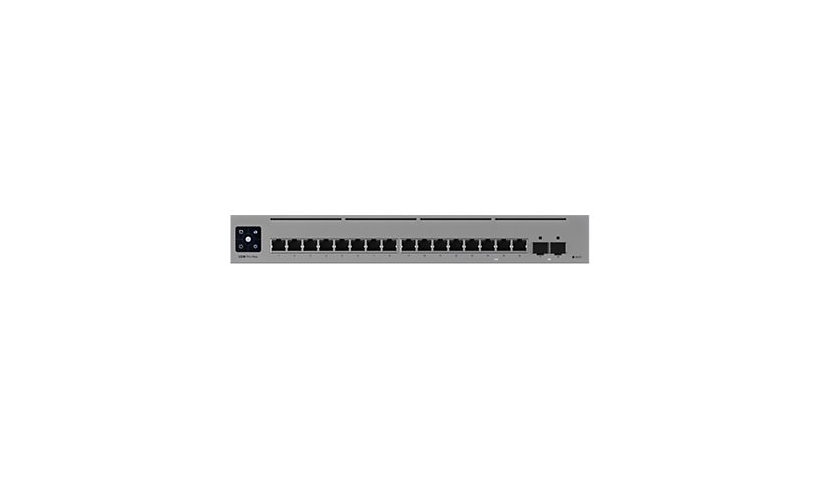

The Ubiquiti UniFi Pro Max 16 is a fanless Layer 3 switch with twelve Gigabit RJ-45 ports, four 2.5GbE ports and two 10G SFP+ uplinks. Etherlighting ports light up to show port location, link speed and VLAN, and a 1.3 inch touchscreen shows switch status. It fits on a desk, a wall or in a rack.
Key Features
- 12 x Gigabit RJ-45 ports
- 4 x 2.5GbE RJ-45 ports
- 2 x 10G SFP+ ports
- Layer 3 with inter-VLAN routing, ACL, 802.1x
- Etherlighting ports, 1.3 in touchscreen
- Fanless, desktop, wall or rack mount
- 84 Gbps switching capacity
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Pro Max 16
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Non-blocking switching throughput: 42 Gbps, Switching capacity: 84 Gbps
Features: 802.1x authentication, Access Control List (ACL) support, DHCP protection, DHCP relay, DHCP snooping, Egress rate limiting, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, Jumbo Frames support, LED status indicators, Link Aggregation Control Protocol (LACP), LLDP-MED, Loop protection, MAC address authentication, Multicast/broadcast rate limiting, Port aggregation, Port disable, Port isolation, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, Reset button, Static routing, Steel housing, Storm Control, VLAN support, Voice VLAN
Connectivity
Ports: 16
Port Quantity: 12
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 2.5GBase-T
Ports (3rd) Quantity: 2
Interface Provided: 12 x 10/100/1000 Base-T RJ-45, 2 x 10GBase-T SFP+, 4 x 2.5GBase-T RJ-45
QSFP Slots: 10 Gigabit Ethernet
Power
Device Type: External power adapter
Power Consumption Operational: 25 watt
Power Provided: 25 watt
Provided Voltage: 5 volt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, RPS (Redundant Power Supply), Status
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 12.8 inch
Depth: 6.3 inch
Weight: 4.3 lbs
Included Items
Included Accessories: Power cord, Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1x
Compliant Standards: FCC, IC, SGCC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
