Product Information

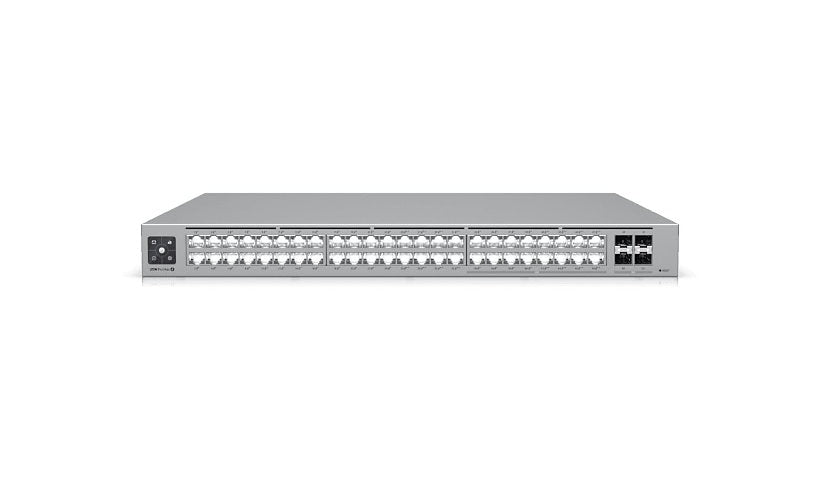

The Ubiquiti UniFi Pro Max 48 PoE is a Layer 3 Etherlighting switch with 16 ports at 2.5GbE, 32 ports at 1GbE and four 10G SFP+ uplinks. Of the copper ports, 32 deliver PoE+ and 16 deliver PoE++, from a 720 W total budget. The lit ports show location, link speed and VLAN at a glance, and the switch is managed through UniFi Network 8.0.24 or later.
Key Features
- 16 x 2.5GbE RJ-45 (8 PoE+, 8 PoE++)
- 32 x 1GbE RJ-45 (24 PoE+, 8 PoE++)
- 4 x 10G SFP+ ports
- 720 W PoE budget
- Layer 3 with inter-VLAN routing
- Etherlighting port LEDs, 1.3 in touchscreen
- 1U rack mount, RPS connector
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Pro Max 48 PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet / 2.5 Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP
Routing Protocol: RSTP, Static IP routing, STP
Performance: Non-blocking switching throughput: 112 Gbps, Switching capacity: 224 Gbps
Jumbo Frame Support: Yes
Features: DHCP relay, DHCP snooping, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, LACP support, Loop detection, MAC address filtering, Media Endpoint Discovery (LLDP-MED), Port isolation, Port mirroring, Rate limit, Storm Control, Voice VLAN
Features: Redundant Power System (RPS) connector
Connectivity
Ports: 48
Port Quantity: 16
Port Type: 1/2.5G (8 PoE+, 8 PoE++)
Ports (2nd) Quantity: 32
Ports Type (2nd): 10/100/1000 (24 PoE+, 8 PoE++)
Ports (3rd) Quantity: 4
Interface Provided: 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 10Gbit LAN SFP+, 8 x 1/2.5GBase-T RJ-45 PoE+ - 30 W, 8 x 1/2.5GBase-T RJ-45 PoE++ - 60 W, 8 x 1000Base-T RJ-45 PoE++ - 60 W
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10 Gigabit SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 820 watt
PoE Budget: 720 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/speed, Port location, RPS (Redundant Power Supply), System, VLAN
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.7 inch
Weight: 13.67 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1x
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
