Product Information

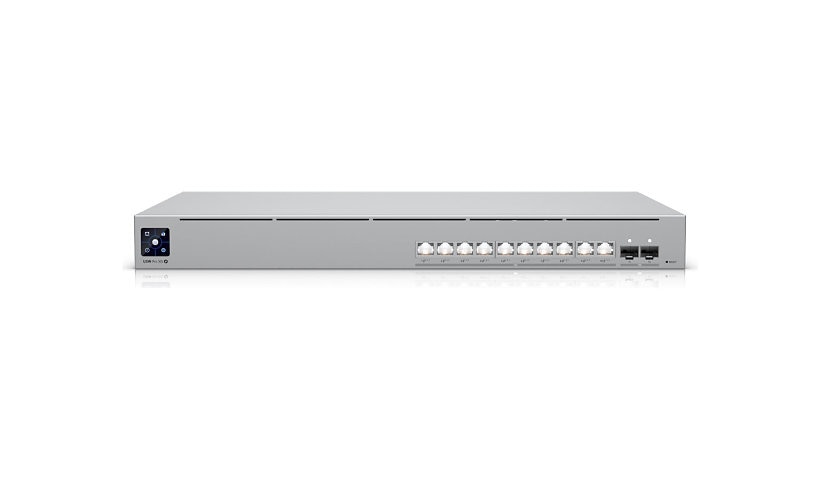

The Ubiquiti UniFi Pro XG 10 PoE is a Layer 3 switch with ten RJ-45 ports at up to 10GbE, each delivering PoE++ up to 90 W, and two 10G SFP+ ports. It shares a 400 W PoE budget and offers 240 Gbps of switching capacity.
Key Features
- 10 x 10GbE RJ-45 PoE++ ports, up to 90 W
- 2 x 10G SFP+ ports
- 400 W PoE budget
- 240 Gbps switching, 179 Mpps
- Layer 3 managed
- Rack mount, brackets included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Pro XG 10 PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Forwarding rate: 179 Mpps, Non-blocking switching throughput: 120 Gbps, Packet buffer size: 2 MB, Switching capacity: 240 Gbps
Capacity: Access lists: 128, ARP entries: 12000, IPv4 routes: 12000, Maximum number of VLANs: 1000
MAC Address Table Size: 32000 entries
Features: 30KV ESD Protector (air-gap discharge), 30KV ESD Protector (contact discharge), 802.1x authentication, Advanced IGMP configuration, Device isolation with ACLs, DHCP guardian, DHCP relay, DHCP server, DHCP snooping, Egress rate limit, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, IP based access filter, Jumbo Frames support, LACP port aggregation, LED status indicators, LLDP-MED, Loop protection, MAC address authentication, MAC address blocking, Multicast/broadcast rate limiting, Port isolation, Port mirroring, Quality of Service (QoS), Reset button, Safety latch, SGCC steel housing, Static routing, Storm Control, Voice VLAN
Features: DC power backup
Connectivity
Ports: 10
Port Quantity: 10
Port Type: 100/1000/2.5G/5G/10GBase-T (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 10 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 90 W, 2 x 10Gbit LAN SFP+
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 550 watt
PoE Budget: 400 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Port location, VLAN
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 10.14 lbs
Included Items
Included Accessories: Mounting brackets, Power cord
Certifications and Listing
Compliant Standards: IEEE 802.1x, IEEE 802.3bt Type 4
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
