Product Information

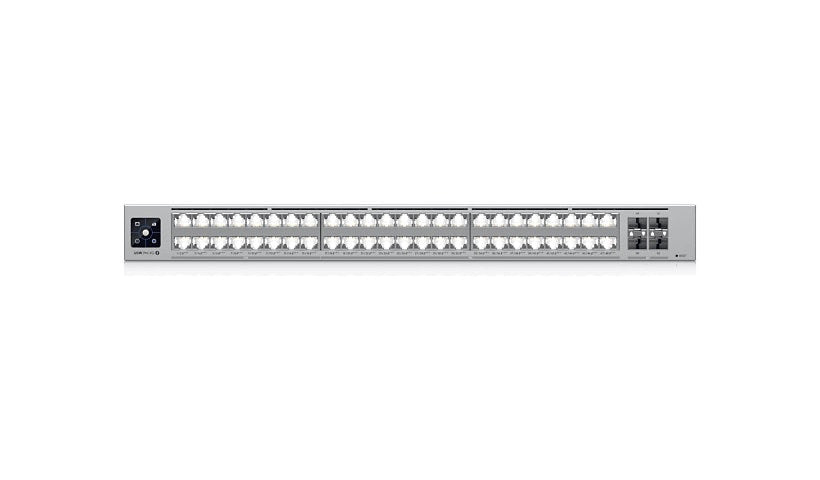

The Ubiquiti UniFi Pro XG 48 PoE is a Layer 3 switch with 32 ports at up to 10GbE and 16 ports at up to 2.5GbE, all PoE++ at up to 90 W, plus four 25G SFP28 uplinks. It shares a 1,080 W PoE budget and offers 920 Gbps of switching capacity with an 8 MB packet buffer.
Key Features
- 32 x 10GbE RJ-45 PoE++ ports, up to 90 W
- 16 x 2.5GbE RJ-45 PoE++ ports, up to 90 W
- 4 x 25G SFP28 uplinks
- 1,080 W PoE budget
- 920 Gbps switching, 684 Mpps
- Layer 3 managed
- Rack mount, brackets included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Pro XG 48 PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet / 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Forwarding rate: 684 Mpps, Non-blocking switching throughput: 460 Gbps, Packet buffer size: 8 MB, Switching capacity: 920 Gbps
Capacity: Access lists: 256, ARP entries: 128000, IPv4 routes: 256000, Maximum number of VLANs: 1000
MAC Address Table Size: 128K entries
Features: 20KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge), 802.1x authentication, Advanced IGMP configuration, Device isolation with ACLs, DHCP guardian, DHCP relay, DHCP server, DHCP snooping, Egress rate limit, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, IP based access filter, Jumbo Frames support, LACP port aggregation, LED status indicators, LLDP-MED, Loop protection, MAC address authentication, MAC address blocking, Multicast/broadcast rate limiting, Port isolation, Port mirroring, Quality of Service (QoS), Reset button, Safety latch, SGCC steel housing, Static routing, Storm Control, Voice VLAN
Features: DC power backup
Connectivity
Ports: 48
Port Quantity: 16
Port Type: 10/100/1000/2.5GBase-T (PoE++)
Ports (2nd) Quantity: 32
Ports Type (2nd): 10/100/1000/2.5G/5G/10GBase-T (PoE++)
Ports (3rd) Quantity: 4
Interface Provided: 16 x 10/100/1000/2.5GBase-T (PoE++) RJ-45 90 W, 32 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 90 W, 4 x 25Gbit LAN SFP28
Power Over Ethernet (PoE): PoE++
QSFP Slots: 25 Gigabit SFP28
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 1280 watt
PoE Budget: 1080 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Port location, VLAN
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 18.9 inch
Weight: 19.18 lbs
Included Items
Included Accessories: Mounting brackets, Power cord
Certifications and Listing
Compliant Standards: IEEE 802.1x, IEEE 802.3bt Type 4
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
