Product Information

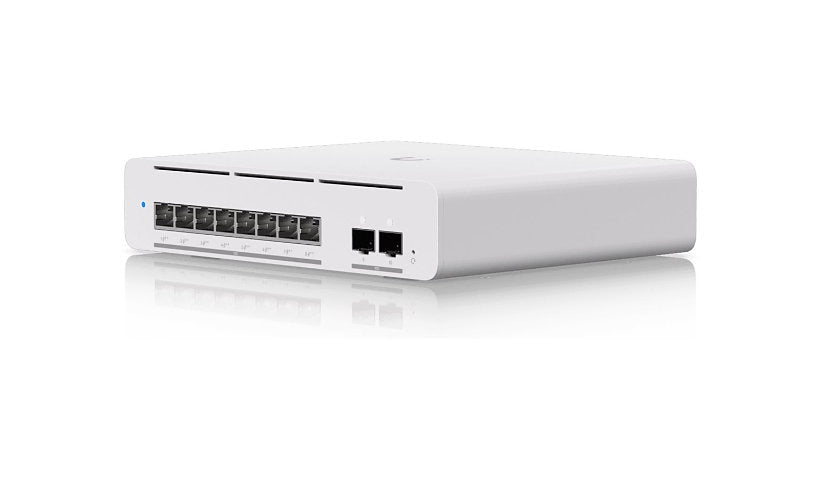

Ubiquiti's UniFi Pro XG 8 PoE is a compact Layer 3 switch with eight RJ-45 ports at up to 10GbE, each delivering PoE++ up to 60 W, plus two 10G SFP+ ports. It shares a 155 W PoE budget and offers 200 Gbps of switching capacity. It sits on a desk or mounts on a wall.
Key Features
- 8 x 10GbE RJ-45 PoE++ ports, up to 60 W
- 2 x 10G SFP+ ports
- 155 W PoE budget
- 200 Gbps switching capacity
- Layer 3 managed, ACL, 802.1x
- Desktop or wall mount, kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Pro XG 8 PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 149 Gbps, Non-blocking switching throughput: 100 Gbps, Packet buffer size: 2 MB, Switching capacity: 200 Gbps
Capacity: Access lists: 128, ARP entries: 12000, IPv4 routes: 12000, Maximum number of VLANs: 1000
MAC Address Table Size: 32000 entries
Features: 30KV ESD Protector (air-gap discharge), 30KV ESD Protector (contact discharge), 802.1x authentication, Access Control List (ACL) support, Advanced IGMP configuration, DHCP protection, DHCP relay, DHCP server, DHCP snooping, Egress rate limit, Etherlighting ports, Fanless, Flow control, IGMP snooping, Inter-VLAN Routing, IP address filtering, Jumbo Frames support, LACP port aggregation, Link Aggregation Control Protocol (LACP), LLDP-MED, Loop protection, MAC address authentication, MAC address blocking, Multicast/broadcast rate limiting, Port aggregation, Port isolation, Port mirroring, Quality of Service (QoS), Reset button, SGCC steel housing, Static routing, Storm Control, Voice VLAN
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000/2.5G/5G/10GBase-T (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 2 x 1/10Gbit LAN SFP+, 8 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 60 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter
Power Provided: 210 watt
PoE Budget: 155 watt
Voltage Required AC/DC: AC
Provided Voltage: 50 - 57 volt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 6.8 inch
Weight: 3.53 lbs
Included Items
Included Accessories: Power adapter wall mounting kit, Power cord, Wall mounting kit
Certifications and Listing
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
