Product Information

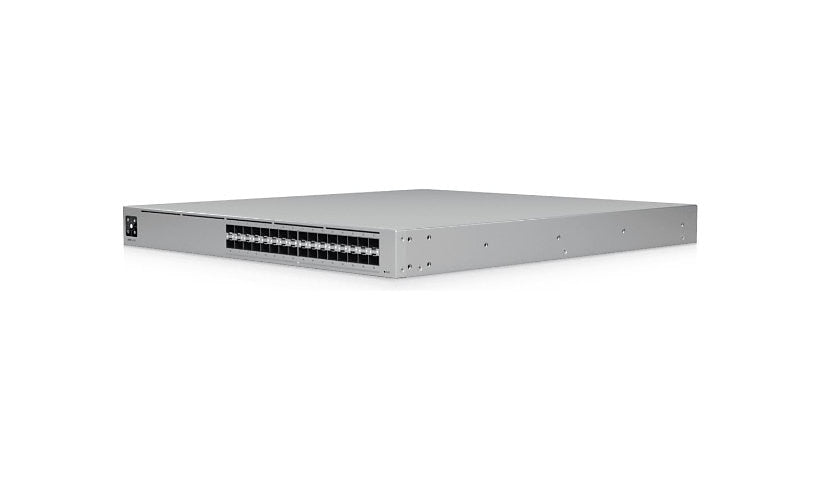

The Ubiquiti UniFi Pro XG Aggregation (USW-PRO-XG-AGGREGATION) is a Layer 3 aggregation switch with 32 SFP28 ports at 25G. It provides 1.6 Tbps of switching capacity, 800 Gbps non-blocking throughput and a 1.2 Bpps forwarding rate, and supports redundant power. It mounts in a rack and is managed through UniFi Network.
Key Features
- 32 x 25G SFP28 ports
- 1.6 Tbps switching capacity, 800 Gbps non-blocking
- 1.2 Bpps forwarding rate
- Layer 3 managed: ACL, DHCP server/relay, IGMP, 802.1x
- Redundant power supported
- Rack mount, power cord included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Pro XG Aggregation
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet / 10 Gigabit Ethernet / 25 Gigabit Ethernet
Manageable: Yes
Routing Protocol: RSTP, Static IP routing, STP
Performance: Forwarding rate: 1.2 Bpps, Non-blocking switching throughput: 800 Gbps, Switching capacity: 1.6 Tbps
Capacity: Access lists: 256, ARP entries: 128000, IPv4 routes (static): 256000, Packet buffer size: 8 MB, Virtual interfaces (VLANs): 1000
MAC Address Table Size: 32000 entries
Features: 12KV ESD Protector (air-gap discharge), 802.1x authentication, 8KV ESD Protector (contact discharge), Access Control List (ACL) support, Advanced IGMP configuration, DHCP protection, DHCP relay, DHCP server, DHCP snooping, Egress rate limit, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, IP address filtering, Jumbo Frames support, LACP port aggregation, Link Aggregation Control Protocol (LACP), LLDP-MED, Loop protection, MAC address authentication, MAC address blocking, Multicast/broadcast rate limiting, Port aggregation, Port isolation, Port mirroring, Quality of Service (QoS), Reset button, SGCC steel housing, Static routing, Storm Control, Voice VLAN
Features: DC power backup
Connectivity
Ports: 32
Port Quantity: 32
Port Type: 25 Gigabit SFP28
Interface Provided: 32 x 25Gbit LAN SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 200 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Power
Built-in Devices: 1.3" touch screen display, 5 x fans
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 18.9 inch
Weight: 15.43 lbs
Included Items
Included Accessories: 4 foot pads, Power cord
Certifications and Listing
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
