Product Information

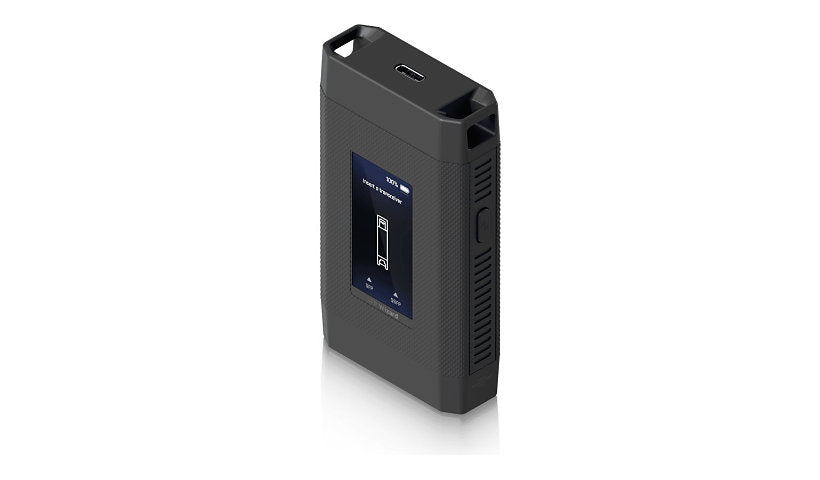

The Ubiquiti UniFi SFP Wizard (UACC-SFP-WIZARD) is a portable transceiver programmer for SFP, SFP+, SFP28, QSFP+ and QSFP28 modules. It has an LCD, Bluetooth pairing, a USB-C port and a built-in 300 mAh rechargeable battery so it can work untethered. The housing is polycarbonate, and it operates from 0 to 40 °C at 10 to 90 percent humidity.
Key Features
- Transceiver programmer
- SFP to QSFP28 support
- Bluetooth pairing
- LCD display
- 300 mAh battery, USB-C
- Polycarbonate housing
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: SFP Wizard
Product Type: Transceiver programmer
Category of Accessory: Tools and toolkits
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Bluetooth Pairing, Built-in battery (300mAh), LCD Display
Connectivity
Compatible Connector Type: SFP / SFP+ / SFP28 / QSFP+ / QSFP28
Cable & Wiring Technology: Fiber optic
Connector Provided: 1 x 24 pin USB-C female
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Materials: Polycarbonate
Dimensions and Weight
Height: 3.6 inch
Width: 2.1 inch
Depth: 0.8 inch
Weight: 2.96 ounce
Certifications and Listing
Compliant Standards: FCC, IC, NDAA
