Product Information

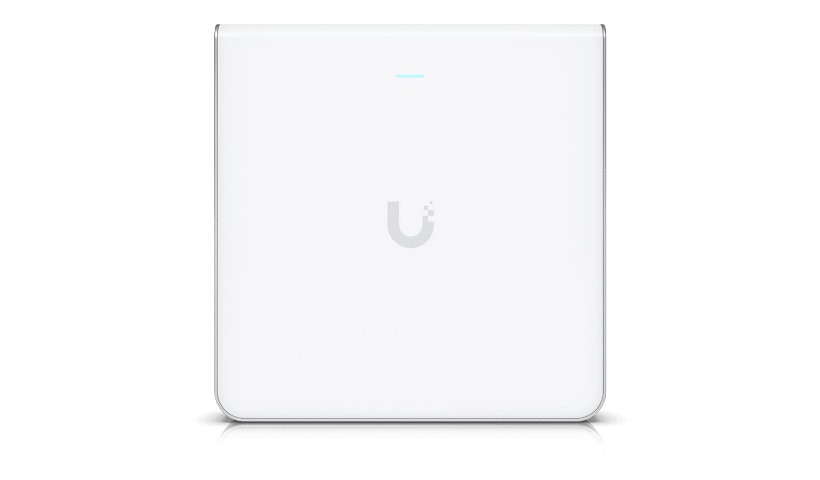

The UniFi U6 Enterprise In-Wall is a Wi-Fi 6E access point for wall installation, covering about 115 m² and over 600 devices. It has a 2.5G PoE+/PoE++ uplink and four Gigabit ports, with BLE and zero-wait DFS, and includes a wall mounting kit. The source says all four Gigabit ports offer PoE output, but the spec sheet lists PoE out on one port, so please confirm.
Key Features
- Wi-Fi 6E tri-band
- About 115 m² coverage, 600+ devices
- 2.5G uplink, PoE+ / PoE++
- 4 x Gigabit ports
- BLE, zero-wait DFS
- Wall mounting kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U6 Enterprise
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Basic Service Set Identifier (BSSID)
Encryption: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Capacity: BSSIDs per radio: 8, Connected devices: 600+, Spatial streams: 10
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 4.8 Gbps, Maximum data rate (6 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Antenna Gain Level: 5.8 DBi
Features: 2x2 MU-MIMO technology, 4x4 MU-MIMO technology, Advanced QoS, Bluetooth management, Guest Isolation, Reset button, VLAN support, Zero-wait DFS
Connectivity
Ports: 4
Interface Provided: 1 x 1000Base-T (PoE output) - RJ-45, 1 x 2.5GBase-T (uplink, PoE) - RJ-45, 3 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 44 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: In-wall mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.3 inch
Width: 6.3 inch
Depth: 6.2 inch
Weight: 31.18 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1Q
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
