Product Information

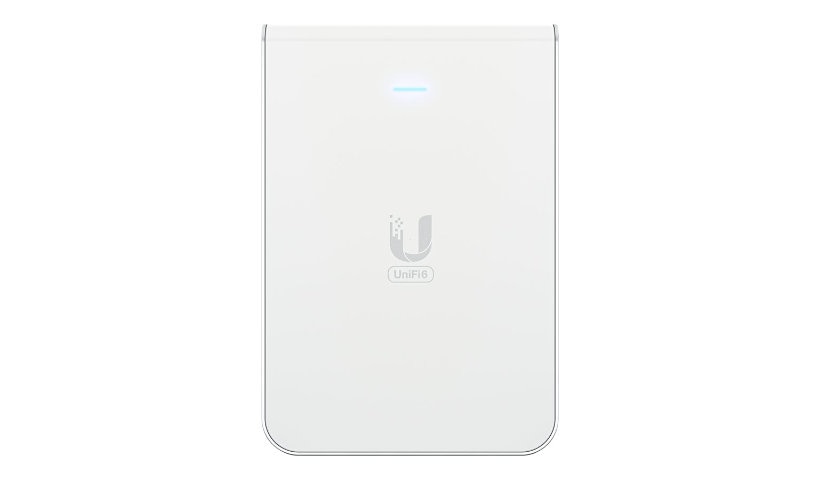

Ubiquiti's UniFi U6 In-Wall is a Wi-Fi 6 AP for in-wall installation that also contains a small switch: one PoE+ input, one PoE output and three more Gigabit ports. It offers 4x4 MU-MIMO on 5 GHz and 2x2 on 2.4 GHz, BLE and zero-wait DFS.
Key Features
- Wi-Fi 6 dual band
- 4x4 (5 GHz) + 2x2 (2.4 GHz)
- Built-in switch, 4 x Gigabit ports
- PoE+ input, PoE output port
- BLE, zero-wait DFS
- In-wall mount kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: 6
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Basic Service Set Identifier (BSSID)
Encryption: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Capacity: BSSIDs per radio: 8, Number of concurrent clients: 300+
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Aggregate data rate: 5.3 Gbps, Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 4x4 MU-MIMO technology, Advanced QoS, Aluminum housing, Guest Isolation, Plastic housing, Reset button, VLAN support, Zero-wait DFS
Connectivity
Interface Provided: 1 x 1000Base-T (PoE input) - RJ-45, 1 x 1000Base-T (PoE output) - RJ-45, 3 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 44 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: In-wall mountable
Dimensions and Weight
Height: 5.5 inch
Width: 3.8 inch
Depth: 1.2 inch
Weight: 16.22 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
