Product Information

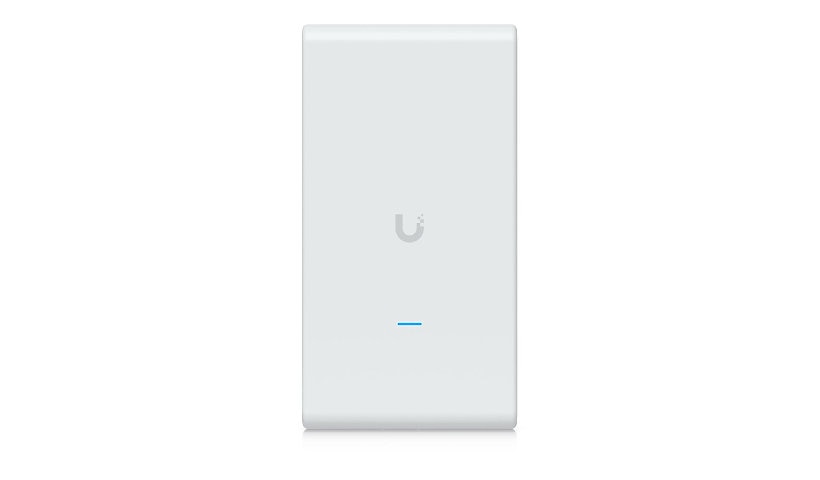

The UniFi U6 Mesh Pro is a weatherproof Wi-Fi 6 access point with 2x2 MU-MIMO on each band (four spatial streams total) and 8 dBi omni antennas, supporting 350+ devices. It has a Gigabit PoE uplink and a Gigabit pass-through port, is IPX6 rated for -22 to 140 °F, and mounts on a wall or pole.
Key Features
- Wi-Fi 6 dual band, 4 streams
- 350+ connected devices
- Gigabit PoE uplink + pass-through
- 8 dBi omni antennas
- IPX6, -22 to 140 °F
- Wall or pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U6 Mesh Pro
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Capacity: BSSIDs per radio: 8, Connected devices: 350+, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 2.4 Gbps
Antenna Form Factor: Internal
Antenna Gain Level: 8 DBi
Directivity: Omni-directional
Features: 2x2 MU-MIMO technology, Guest Isolation, Rate limit, Reset button, Weatherproof
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 1000Base-T (PoE input) - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 13.5 inch
Width: 7.1 inch
Depth: 2.4 inch
Weight: 28.89 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: FCC, IC, IPX6
Compliant Standards: IEEE 802.1Q
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
