Product Information

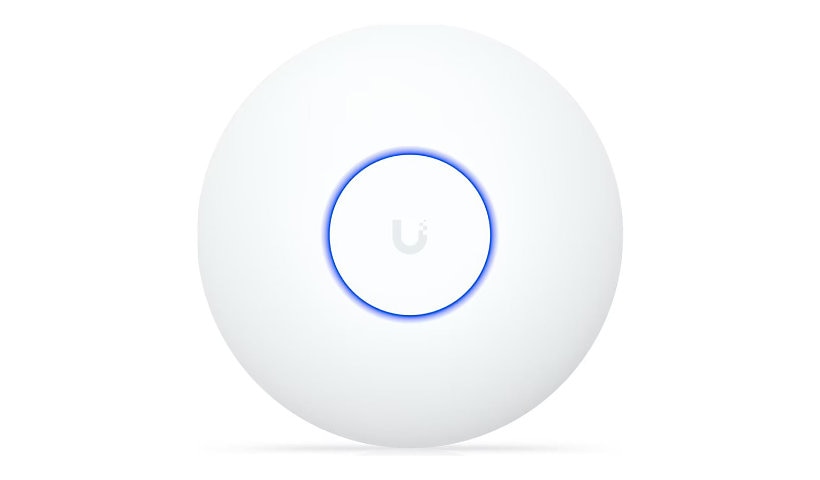

Ubiquiti's UniFi U7 Lite is a compact dual band Wi-Fi 7 access point with up to 4.3 Gbps for 200+ devices. It has 2x2 MU-MIMO, a 2.5G PoE port, band steering and fast roaming, and includes a wall/ceiling kit. The power injector is not included.
Key Features
- Wi-Fi 7 dual band, 2x2 MU-MIMO
- Up to 4.3 Gbps, 200+ devices
- 2.5G RJ-45, PoE
- Band steering, fast roaming
- Wall/ceiling mount kit
- Power injector not included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Lite
Product Type: Wireless access point
Device Type: Power injector (not included)
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: BSSIDs per radio: 8, Connected devices: 200+, Spatial streams: 4
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 240 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps
Antenna Form Factor: Internal
Operating System Required: UniFi Network 9.0.114 or later, UniFi OS
Features: 2x2 MU-MIMO technology, Advanced radio management, Band steering, BSS transition management, Captive Portal, Client isolation, Custom branding landing page support, External portal server support, Fast Roaming, Guest Isolation, LED status indicator, Locking notch, Passpoint Release 2, Password authentication, Payment-based authentication, Private Pre-Shared Key (PPSK), Radio resource management (RRM), Rate limit, Reset button, UV stabilized polycarbonate enclosure, Voucher authentication, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 1 x 2.5GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 6.8 inch
Width: 6.8 inch
Depth: 1.3 inch
Weight: 11.04 ounce
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
