Product Information

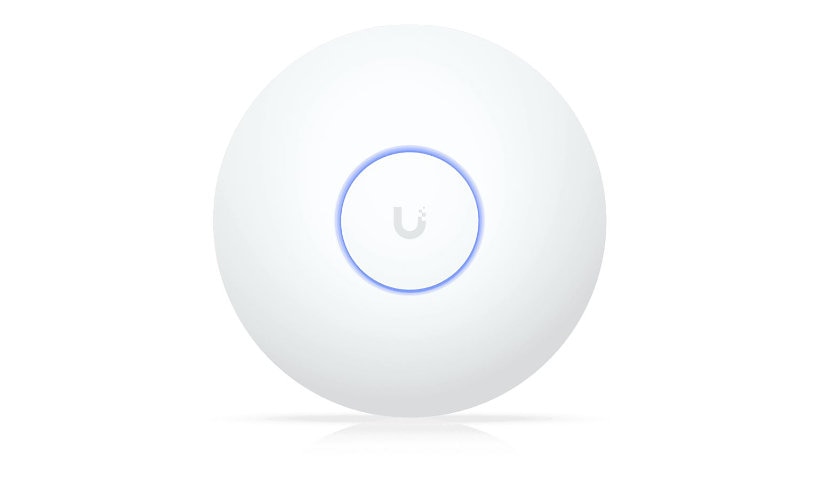

Ubiquiti's UniFi U7 Long-Range is a compact Wi-Fi 7 access point with 3x3 MU-MIMO on 5 GHz and 2x2 on 2.4 GHz, supporting 300+ clients and up to 160 m² of coverage. It has a 2.5G PoE port, HotSpot 2.0 and fast roaming, and comes with a mounting plate.
Key Features
- Wi-Fi 7 dual band
- 3x3 (5 GHz) + 2x2 (2.4 GHz)
- 300+ clients, up to 160 m²
- 2.5G RJ-45, PoE
- HotSpot 2.0, fast roaming
- Wall or ceiling mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Long-Range
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: Streams: 5, Wireless clients: 300+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps
Features: 2x2 MU-MIMO 2.4Ghz, 3x3 MU-MIMO 5GHz, Advanced radio management, Band steering, BSS transition management, Client isolation, Dynamic RADIUS-assigned VLAN, Fast Roaming, HotSpot 2.0, Hotspot captive portal, MU-MIMO technology, Private Pre-Shared Key (PPSK), Radio resource management (RRM), Wi-Fi speed limiting, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 1 x 2.5GBase-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: System
Dimensions and Weight
Height: 1.7 inch
Width: 6.9 inch
Depth: 6.9 inch
Weight: 15.8 ounce
Included Items
Included Accessories: Plastic mounting plate
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
