Product Information

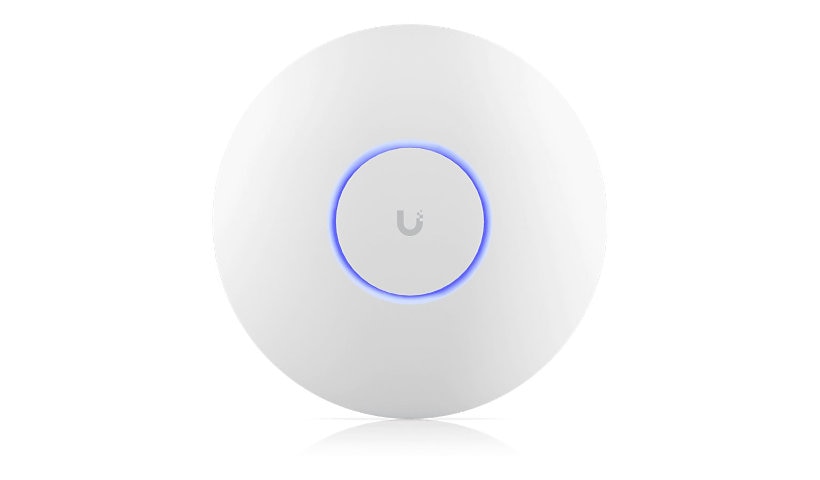

Ubiquiti's UniFi U7 Pro Max is a tri-band Wi-Fi 7 access point for busy spaces, supporting 500+ clients with 4x4 and 2x2 MIMO radios. It has a 2.5G PoE+ port, VLAN and PPSK support, works from -22 to 140 °F and includes a wall/ceiling mount kit.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- 500+ concurrent clients
- 4x4 and 2x2 MIMO radios
- 1/2.5G RJ-45, PoE+
- VLAN, PPSK, advanced QoS
- Wall/ceiling mount kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro Max
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Capacity: BSSIDs per radio: 8, Concurrent clients: 500+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 8648 Mbps, Maximum data rate (6 GHz): 5765 Mbps
Antenna Form Factor: Internal
Operating System Required: UniFi OS
Features: 2x2 MIMO technology, 4x4 MIMO technology, Advanced QoS, LED status indicator, Private Pre-Shared Key (PPSK), VLAN support
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.8 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 23.98 ounce
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.1Q
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
