Product Information

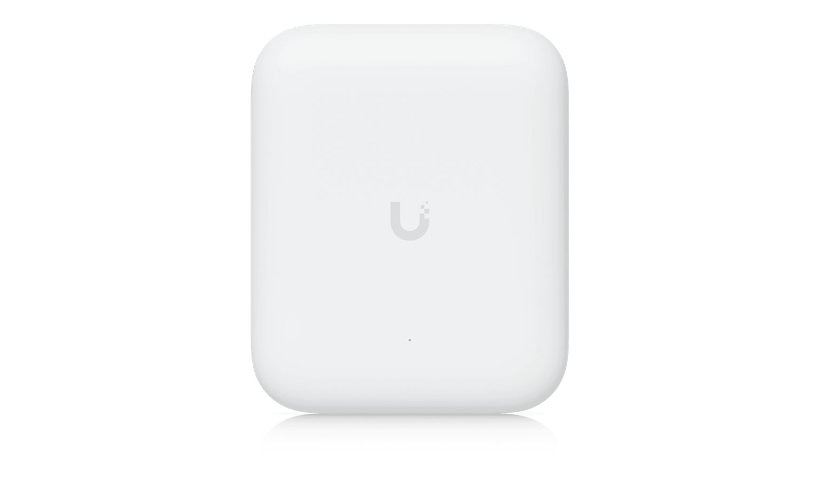

Ubiquiti's UniFi U7 Pro Outdoor (U7-PRO-OUTDOOR-US) is an IP67 rated Wi-Fi 7 access point with 2x2 MU-MIMO on 2.4, 5 and 6 GHz, directional coverage and an aluminum alloy enclosure. It has a 2.5G PoE+ port, works from -22 to 140 °F and includes a pole/wall mount kit.
Key Features
- Wi-Fi 7 tri-band, 2x2 MU-MIMO
- 2.5G RJ-45, PoE+
- IP67, aluminum enclosure
- Operating range -22 to 140 °F
- HotSpot 2.0, fast roaming
- Pole/wall mount kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro Outdoor
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: BSSIDs per radio: 8, Streams: 6, Wireless clients: 300+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.8 Gbps
Antennas: 3
Antenna Form Factor: Internal
Directivity: Directional
Features: 2x2 MU-MIMO 2.4Ghz, 2x2 MU-MIMO 5GHz, 2x2 MU-MIMO 6Ghz, Advanced radio management, Aluminum alloy enclosure, Band steering, BSS transition management, Captive Portal, Client isolation, Fast Roaming, HotSpot 2.0, MU-MIMO technology, Power over Ethernet (PoE), Private Pre-Shared Key (PPSK), Radio resource management (RRM), UV stabilized polycarbonate enclosure, Wi-Fi speed limiting, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 1 x 2.5 GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: System
Dimensions and Weight
Height: 8.2 inch
Width: 6.7 inch
Depth: 2.6 inch
Weight: 2.65 lbs
Included Items
Included Accessories: Pole/wall mount kit
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, IP67, IPX6, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
