Product Information

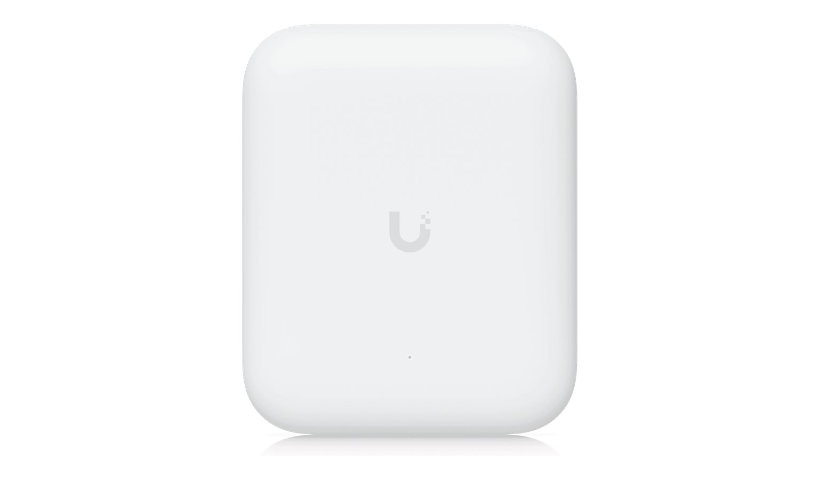

Ubiquiti's UniFi U7 Pro Outdoor (U7-PRO-OUTDOOR) is a weather ready Wi-Fi 7 access point in a metal housing, working from -22 to 140 °F. It has 2x2 MIMO, a 2.5G PoE+ port, VLAN and PPSK support, and draws about 21 W. A wall or pole mounting kit is included.
Key Features
- Wi-Fi 7 (802.11be)
- 2x2 MIMO
- 1/2.5G RJ-45, PoE+
- Metal housing, -22 to 140 °F
- VLAN, PPSK, guest isolation
- Wall or pole mount kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Data Transfer Rate: 8.6 GBps
Capacity: BSSIDs: 8, Wireless clients: 300+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 8.6 Gbps
Features: 2x2 MIMO technology, Advanced QoS, Guest Isolation, LED status indicator, Metal housing, Private Pre-Shared Key (PPSK), Reset button, VLAN support
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Required Voltage: DC 44 - 57 volt
Power Consumption Operational: 21 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / pole mountable
Dimensions and Weight
Height: 8.2 inch
Width: 6.7 inch
Depth: 2.6 inch
Weight: 2.65 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1Q
Compliant Standards: IP67, IPX6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
