Product Information

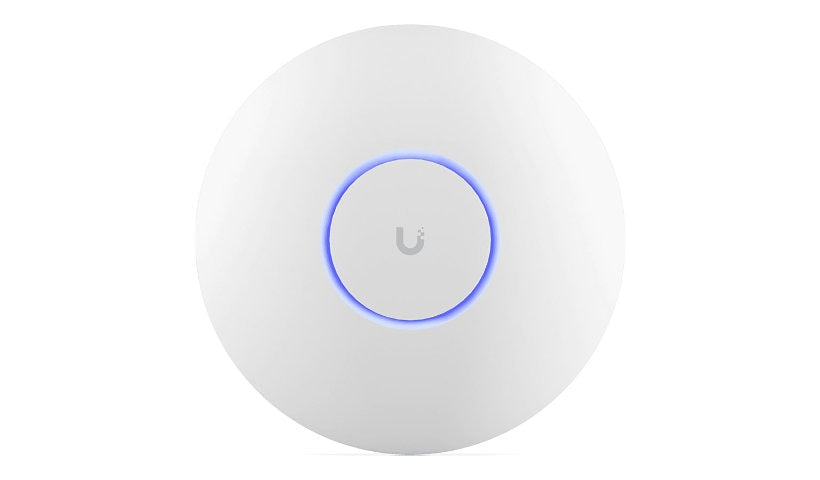

This Ubiquiti UniFi U7 Pro 5-pack (U7-PRO-5-US) holds five tri-band Wi-Fi 7 access points with 2x2 MU-MIMO on 2.4, 5 and 6 GHz. Each has a 2.5G PoE+ port, a metal housing, HotSpot 2.0 and PPSK, and comes with a Pro Mount.
Key Features
- Pack of 5 access points
- Wi-Fi 7 tri-band, 2x2 MU-MIMO
- 1/2.5G RJ-45, PoE+
- HotSpot 2.0, PPSK, VLAN
- Metal housing
- Pro Mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro
Product Type: Wireless access point
Packaged Quantity: 5
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: BSSIDs per radio: 8, Streams: 6, Wireless clients: 300+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.8 Gbps
Antenna Form Factor: Internal
Features: 2x2 MIMO technology, 2x2 MU-MIMO 2.4Ghz, 2x2 MU-MIMO 5GHz, 2x2 MU-MIMO 6Ghz, Advanced QoS, Client isolation, Fast Roaming, Guest Isolation, HotSpot 2.0, Metal housing, Private Pre-Shared Key (PPSK), Reset button, VLAN support, Wi-Fi speed limiting, WiFi schedules
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 44 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.8 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 23.98 ounce
Included Items
Included Accessories: Pro Mount
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: ANATEL, FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
