Product Information

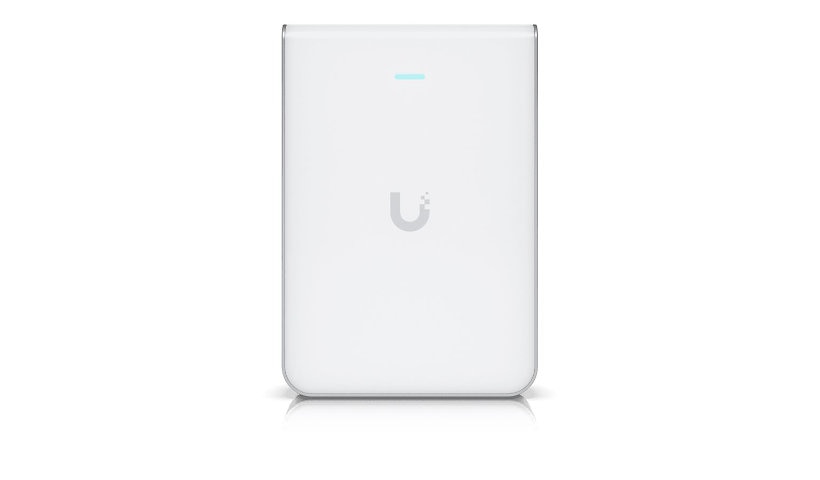

Ubiquiti's UniFi U7 Pro Wall is a tri-band Wi-Fi 7 access point built for wall mounting, supporting 300+ devices and coverage up to about 140 m². It has 2x2 MU-MIMO, a 2.5G PoE+ port and PPSK, and includes a wall mounting kit.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- 300+ devices, up to 140 m²
- 2x2 MU-MIMO
- 1/2.5G RJ-45, PoE+
- PPSK, guest isolation
- Wall mounting kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro Wall
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Encryption: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Capacity: BSSIDs per radio: 8, Connected devices: 300+, Spatial streams: 6
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.7 Gbps
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, Guest Isolation, LED status indicator, Private Pre-Shared Key (PPSK), Rate limit, Reset button
Connectivity
Interface Provided: 1 x 1/2.5GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall Mountable
Dimensions and Weight
Height: 5.9 inch
Width: 4.1 inch
Depth: 1.4 inch
Weight: 20.46 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.1Q
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
