Product Information

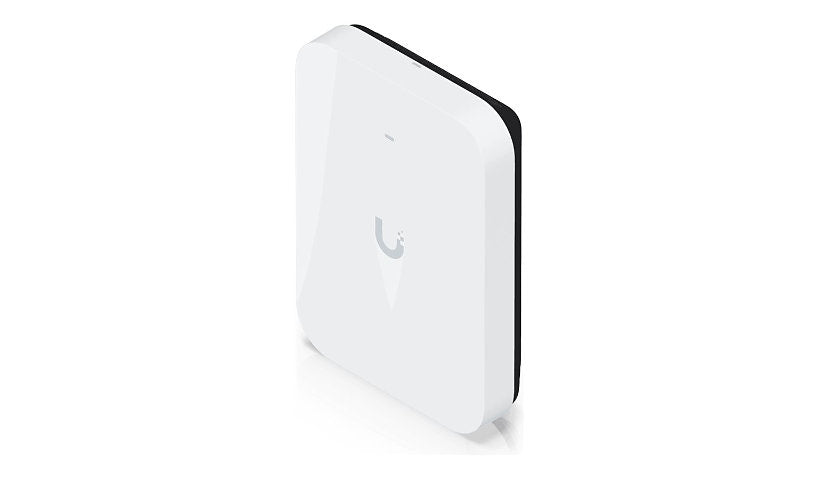

Ubiquiti's U7 Pro XG Wall is a tri-band Wi-Fi 7 access point with 2x2 MU-MIMO and a 10G PoE+ uplink, with mesh support. Per band speed figures in the source look inconsistent, so please confirm them with us before ordering.
Key Features
- Wi-Fi 7 tri-band
- 2x2 MU-MIMO
- 10G RJ-45, PoE+
- Wall mount
- UniFi mesh
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro XG Wall
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: Radio Service Set ID (SSID), RADIUS
Capacity: BSSIDs per radio: 8, Connected devices: 300+, Spatial streams: 6
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.8 Gbps
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, Band steering, Captive Portal, Mesh networking, Reset button
Connectivity
Interface Provided: 1 x 10GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall Mountable
Status Indicators: Status
Dimensions and Weight
Height: 4.3 inch
Width: 6.1 inch
Depth: 1.3 inch
Weight: 17.81 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
