Product Information

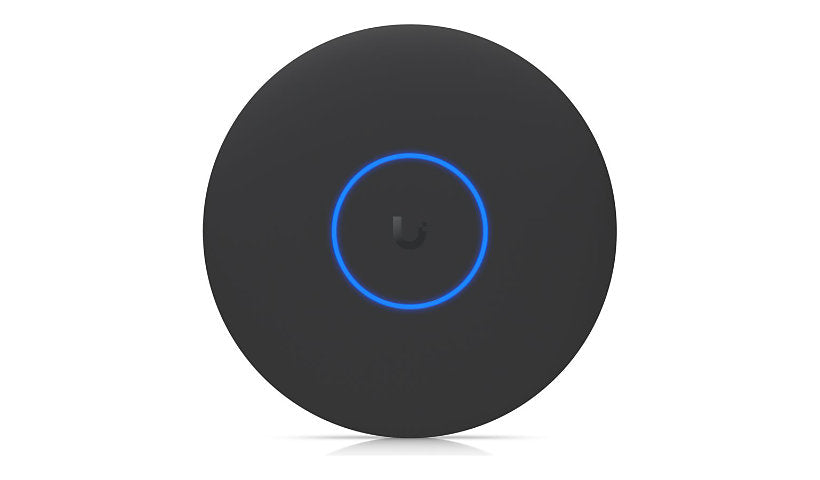

Ubiquiti's UniFi U7 Pro XG (U7-PRO-XG-B-US) is a Wi-Fi 7 access point covering 2.4, 5 and 6 GHz with a 10G multi-gig uplink. It supports 300+ clients, 2x2 MU-MIMO, hotspot and guest portal features, and draws about 22 W over PoE+. A mounting kit is included.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- 10G RJ-45 uplink
- 300+ clients supported
- 2x2 MU-MIMO, band steering
- PoE+ powered, about 22 W
- Wall or ceiling mount kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro XG
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADSEC
Data Transfer Rate: 10 GBps
Capacity: Connected devices: 300, Spatial streams: 6
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.8 Gbps, Maximum data rate (IEEE 802.11ac): 1.7 Gbps, Maximum data rate (IEEE 802.11ax): 2.4 Gbps, Maximum data rate (IEEE 802.11be): 5.8 Gbps, Maximum data rate (IEEE 802.11n): 300 Mbps
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, Band steering, Custom branding landing page support, Dynamic RADIUS-assigned VLAN, External portal server support, HotSpot 2.0, Hotspot captive portal, Isolated guest network support, Password authentication, Payment-based authentication, Polycarbonate/aluminum alloy housing, Private Pre-Shared Key (PPSK), Reset button, UV stabilized enclosure, Voucher authentication, Wi-Fi speed limiting, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 10 Gigabit Ethernet - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Required Voltage: DC 42.5 - 57 volt
Power Consumption Operational: 22 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Dimensions and Weight
Height: 1.3 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 26.45 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
