Product Information

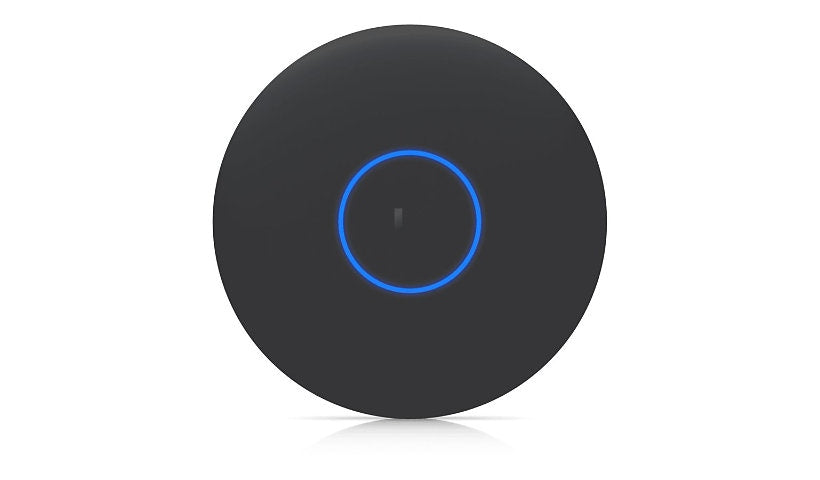

The UniFi U7 Pro XGS is a tri-band Wi-Fi 7 access point with 4x4 MU-MIMO on 5 GHz and 2x2 on 2.4 and 6 GHz, built to handle 500+ clients. It has a single 10G PoE++ port, an aluminum alloy housing, fast roaming and HotSpot 2.0, works from -22 to 104 °F and includes a wall and ceiling kit. A compatible 10G PoE++ injector (UACC-POE++-10G) is sold separately.
Key Features
- Wi-Fi 7 tri-band
- 4x4 on 5 GHz, 2x2 on 2.4 / 6 GHz
- 500+ clients
- 10G RJ-45, PoE++
- Aluminum alloy housing
- Wall / ceiling kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: U7 Pro XGS
Product Type: Wireless access point
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: BSSIDs per radio: 8, Streams: 8, Wireless clients: 500+
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 5.8 Gbps, Maximum data rate (6 GHz): 8.6 Gbps
Features: 2x2 MU-MIMO 2.4Ghz, 2x2 MU-MIMO 6Ghz, 4x4 MU-MIMO 5GHz, Advanced radio management, Aluminum alloy enclosure, Band steering, BSS transition management, Captive Portal, Client isolation, Fast Roaming, HotSpot 2.0, MU-MIMO technology, Private Pre-Shared Key (PPSK), Radio resource management (RRM), Real-time spectral analysis, Reset button, UV stabilized polycarbonate enclosure, Wi-Fi speed limiting, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 1 x 10GBase-T (PoE++) - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: System
Dimensions and Weight
Height: 1.3 inch
Width: 8.5 inch
Depth: 8.5 inch
Weight: 28.22 ounce
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
