Product Information

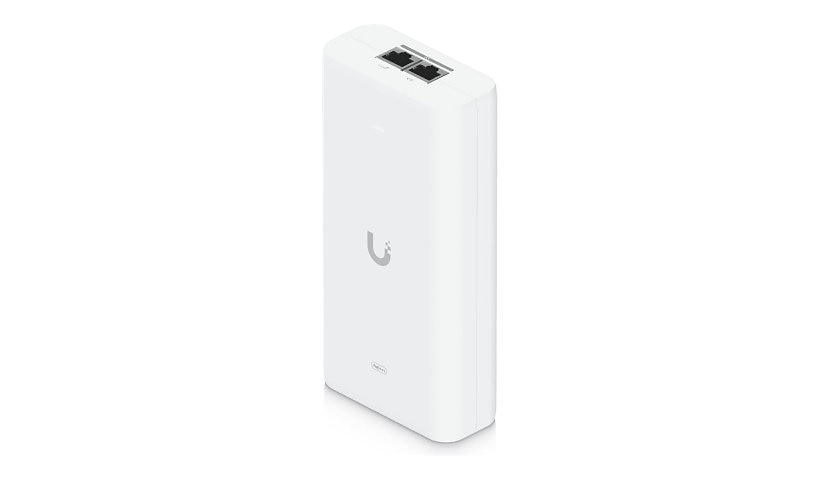

Ubiquiti's UniFi UACC-POE+++-10G delivers up to 90 W at 54 V DC along with 10 Gigabit data over one cable. It has shielded RJ-45 ports, 88 percent efficiency and mounts on a DIN rail or wall. It is NDAA compliant.
Key Features
- 1 x 10G RJ-45 PoE output
- Up to 90 W at 54 V DC
- 88% efficiency
- Shielded RJ-45 ports
- DIN rail or wall mount
- AC 100-240 V input
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: White
Network and Communication
Features: Shielded RJ45 ports
Connectivity
Interface Provided: 1 x 10 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Output Connector Quantity: 1
Power
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Device Features: 4-pair powering, Clamping protection, LED indicators
Power Output Connectors Details: 1 x RJ-45, 1 x RJ-45 1.67 A
Power Provided: 90 watt
Form Factor (Power Device): DIN rail mountable / wall
Input Connectors: 1
Efficiency: 88%
Surge Suppression: Yes
Clamping Level: 60 volt
Surge Response Time: 1 nanosecond
Provided Voltage: DC 54 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Dimensions and Weight
Height: 6.5 inch
Width: 2.8 inch
Depth: 1.7 inch
Weight: 13.12 ounce
Certifications and Listing
Compliant Standards: CCC, FCC, IC, KC, NDAA, RoHS, UKCA, UL
Compliant Standards: IEEE 802.3bt Type 4
ENERGY STAR Certified: No
Warranty
Service Activation: No
