Product Information

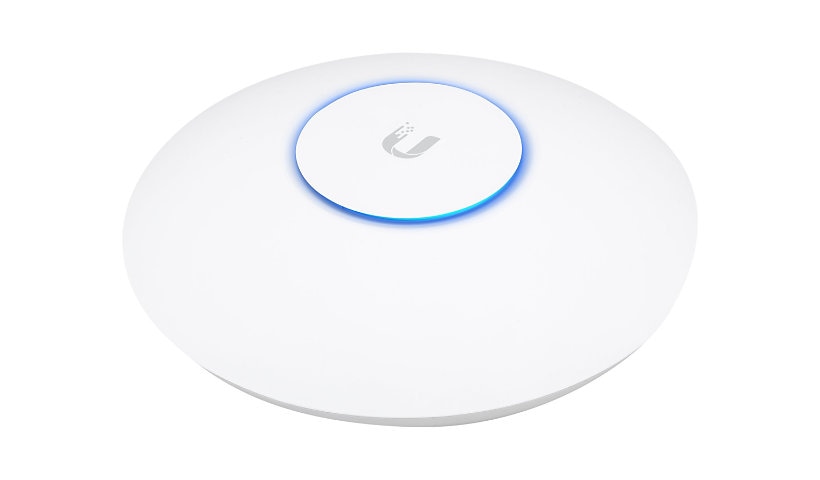

Ubiquiti's UniFi AP AC HD is a Wi-Fi 5 Wave 2 access point with 4x4 MU-MIMO up to 1733 Mbps for busy networks. It has two Gigabit ports, draws about 17 W over PoE+ and includes mounting brackets.
Key Features
- Wi-Fi 5 Wave 2 dual band
- Up to 1733 Mbps, 4x4 MU-MIMO
- 2 x Gigabit RJ-45 (PoE+)
- About 17 W
- Wall or ceiling mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: UAP-AC-HD
Product Type: Wireless access point
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Basic Service Set Identifier (BSSID)
Encryption: AES, TKIP, WEP, WPA, WPA-PSK, WPA2
Data Transfer Rate: 1.733 GBps
Capacity: BSSIDs per radio: 1 - 4, Number of concurrent clients: 500+
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 2.4 GHz, 5 GHz
Antennas: 4
Antenna Form Factor: Internal
Features: 4T4R MIMO technology, Ceiling mountable, Quality of Service (QoS), Reset button, Uplink, VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 2 x 1000Base-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 17 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 8.7 inch
Width: 8.7 inch
Depth: 1.9 inch
Weight: 24.69 ounce
Included Items
Included Accessories: Mounting brackets
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
