Product Information

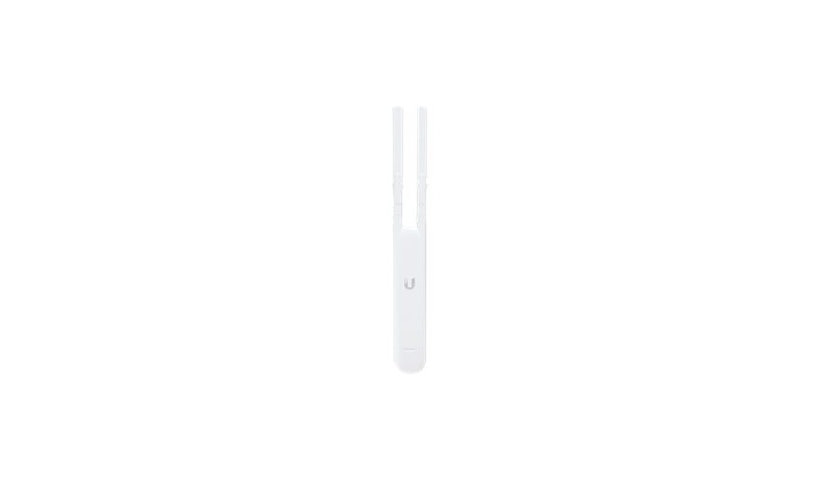

This Ubiquiti UniFi AP AC Mesh 5-pack (UAP-AC-M-5-US) holds five weather ready dual band Wi-Fi 5 access points with 2x2 MIMO and mesh support, up to 867 Mbps and about 600 ft range. Each has a Gigabit PoE port, works from -22 to 158 °F and comes with a PoE injector and pole mount.
Key Features
- Pack of 5 access points
- Wi-Fi 5 dual band, 2x2 MIMO
- Mesh networking
- Range up to 600 ft
- Gigabit RJ-45, PoE injector included
- Wall or pole mount, -22 to 158 °F
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: UAP-AC-M
Product Type: Wireless access point
Packaged Quantity: 5
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2
Data Transfer Rate: 867 MBps
Capacity: BSSIDs per radio: 4, Concurrent devices: 250+
Wireless LAN: 802.11a/b/g/n/ac
Network Band: 2.4 GHz, 5 GHz
Antennas: 2
Max Range Open Space: 600 ft
Directivity: Omni-directional
Features: 2T2R MIMO technology, Mesh networking, Pole mountable, Quality of Service (QoS), VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 8.5 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 13.9 inch
Width: 1.8 inch
Depth: 1.4 inch
Weight: 5.36 ounce
Included Items
Included Accessories: Mounting brackets, PoE injector, Pole mount
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
Compliant Standards: FCC, IC, Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
