Product Information

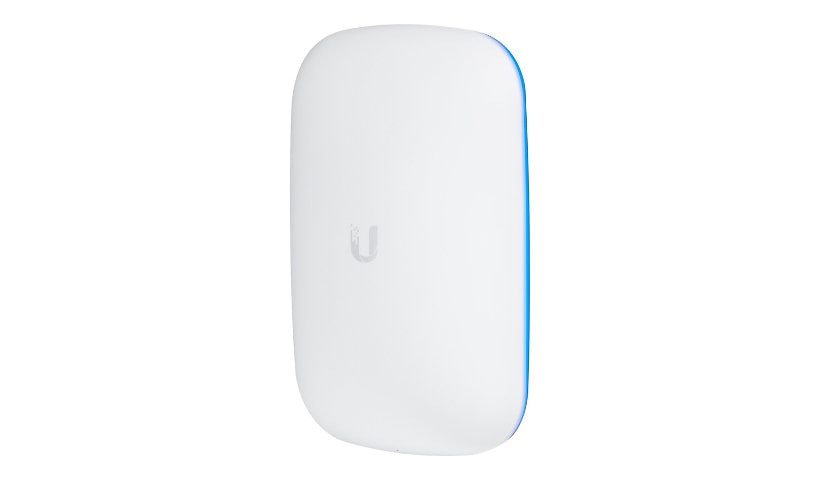

Ubiquiti's UniFi AP BeaconHD is an 802.11ac Wave 2 mesh point with 4x4 MU-MIMO that plugs straight into a wall outlet to extend Wi-Fi coverage in homes and offices. It has an internal power supply and draws about 11.5 W. This is a Wi-Fi range extender, not a wired access point.
Key Features
- Wi-Fi 5 Wave 2 dual band
- 4x4 MU-MIMO
- Plugs into a wall outlet
- Mesh range extender
- About 11.5 W
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: AP BeaconHD
Product Type: Wi-Fi range extender
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2
Capacity: BSSIDs per radio: up to 8
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 2.4 GHz, 5 GHz
Antennas: 4
Antenna Form Factor: Internal
Features: 4x4 MU-MIMO technology, Reset button, Wi-Fi Multimedia (WMM) support
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 11.5 watt
Memory and Processor
Clock Speed: 880 megahertz
RAM Installed: 128 megabyte
Memory Technology: SDRAM
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: In-wall mountable
Dimensions and Weight
Height: 6.7 inch
Width: 4.4 inch
Depth: 1.3 inch
Weight: 9.17 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
