Product Information

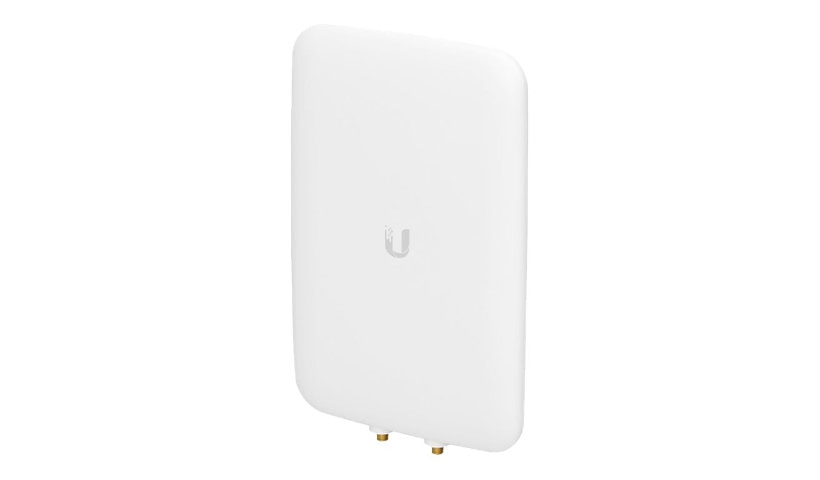

The Ubiquiti UniFi UMA-D is an optional directional antenna for the UniFi AC Mesh AP (UAP-AC-M), extending range and shaping coverage. It has 10 dBi at 2.4 to 2.5 GHz and 15 dBi at 5.1 to 5.9 GHz, linear dual polarization and VSWR of 2:1, with two RP-SMA connectors. It is made of UV stable thermoplastic and comes with a ball joint mount and wall/pole mount kit.
Key Features
- Dual band directional antenna
- 10 dBi 2.4, 15 dBi 5 GHz
- For UniFi AC Mesh
- 2 RP-SMA connectors
- Ball joint mount
- Wall or pole kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: UMA-D
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 10 dBi (for 2.4 - 2.5 GHz), 15 dBi (for 5.1 - 5.9 GHz)
Antenna Compatibility: 802.11ac
Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: Linear dual polarization
Connectivity
Connector Provided: 2 x RP-SMA
Technical Information
Voltage Standing Wave Ratio (VSWR): 2:1
Physical Characteristics
Mounting Kit: Included
Placement: Pole mountable, Wall mountable
Materials: UV-stable rugged thermoplastic
Dimensions and Weight
Height: 7.9 inch
Width: 5 inch
Depth: 1.3 inch
Weight: 14.11 ounce
Included Items
Package Content: Ball joint mount, Wall/pole mount kit
Warranty
Service Activation: No
