Product Information

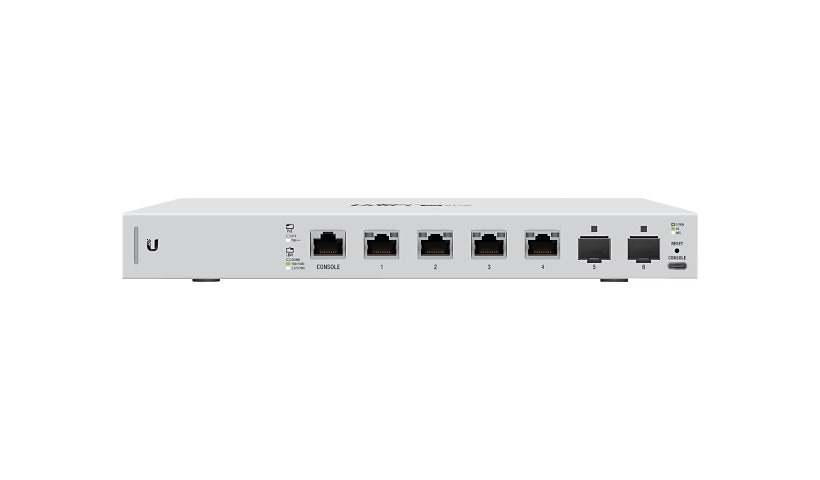

Ubiquiti's UniFi Switch US-XG-6POE is a managed desktop switch with four multi-gigabit ports up to 10G that supply 802.3bt PoE++ at up to 60 W, plus two 10G SFP+ ports. It runs from an external power adapter and includes wall mounting hardware.
Key Features
- 4 x 100M/1G/2.5G/5G/10G RJ-45 PoE++ ports, 60 W
- 2 x 10G SFP+ ports
- UniFi managed
- Desktop or wall mount
- External power adapter
- Mounting brackets and screws included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: US-XG-6POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI
Operating System Required: Apple MacOS, Linux, Microsoft Windows 7 / 8 / 10
Features: 12KV ESD Protector, DHCP support, Reset button
Connectivity
Ports: 6
Port Quantity: 4
Port Type: 100/1000/2.5G/5G/10GBase-T (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x console (USB) Type C, 1 x serial (console) RJ-45, 2 x 10Gbit LAN SFP+, 4 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE++ - 60 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter
Power Consumption Operational: 40 watt
Provided Voltage: DC 54 volt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, PoE, Port transmission speed, Status
Dimensions and Weight
Height: 1.3 inch
Width: 10.6 inch
Depth: 6.5 inch
Weight: 2.87 lbs
Included Items
Included Accessories: 4 x screws, 4 x wall anchors, 8 screws, Mounting brackets
Certifications and Listing
Compliant Standards: CAN ICES-3 Class A, Directive 2012/19/EU, ETSI 300 019-1-4, FCC, IC, ICES-003, ISED, NMB-3 Class A, RoHS, WEEE
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
