Product Information

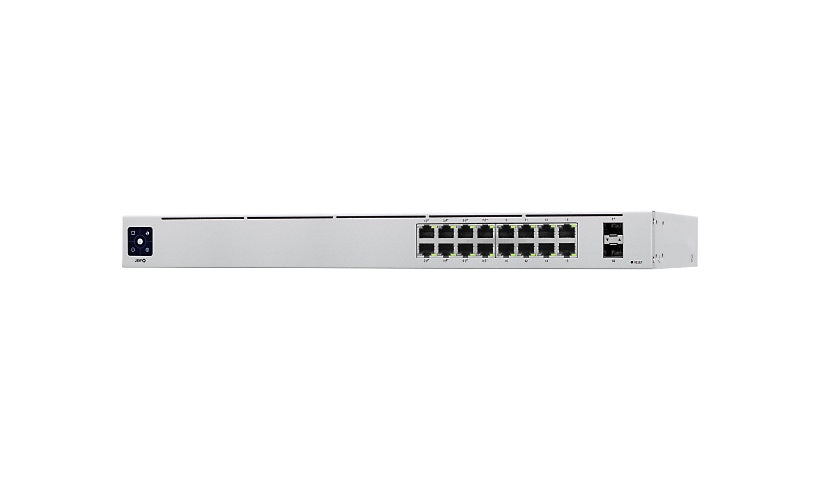

The Ubiquiti UniFi USW-16-POE is a second generation managed switch with 16 Gigabit RJ-45 ports, eight of them PoE+, and two Gigabit SFP ports for fiber uplinks. It has a 42 W PoE budget and runs fanless, so it suits quiet rooms. It is set up and managed through the UniFi Network controller.
Key Features
- 16 x Gigabit RJ-45 ports (8 with PoE+)
- 2 x Gigabit SFP ports
- 42 W PoE budget
- Layer 2 managed via UniFi Network
- Fanless
- Desktop or 1U rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-16-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Authentication Method: RADIUS
Performance: Forwarding rate: 26.78 Mpps, Non-blocking bandwidth: 18 Gbps, Switching capacity: 36 Gbps
Features: 12KV ESD Protector, Aggregation mode, Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Dynamic VLAN Support (GVRP), Fanless, Flow control, Jumbo Frames support, Port mirroring, Storm Control, Switching
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000 (8 PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x management, 2 x Gigabit LAN SFP, 8 x 1000Base-T RJ-45, 8 x 1000Base-T RJ-45 PoE+ - 32 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 18 watt
Power Provided: 60 watt
PoE Budget: 42 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Link/activity/speed, PoE, Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 7.9 inch
Weight: 6.17 lbs
Certifications and Listing
Compliant Standards: ETSI 300 019-1-4, FCC, IC
Compliant Standards: IEEE 802.11x, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
