Product Information

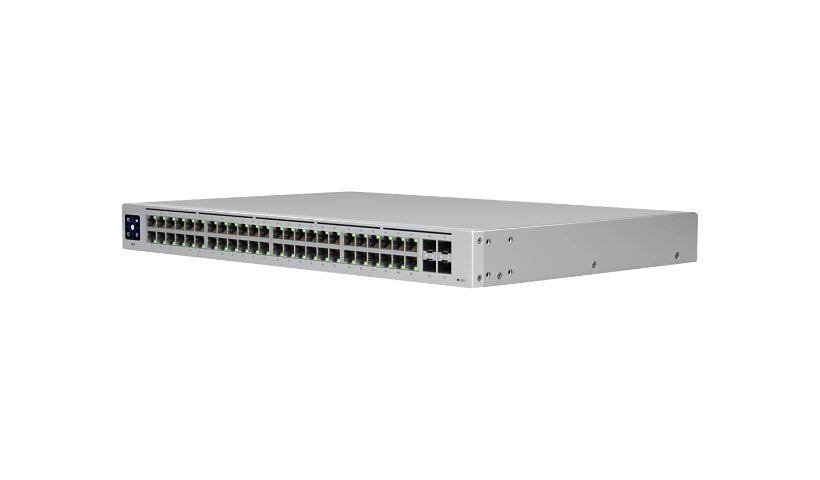

The Ubiquiti UniFi Switch 48 is a Layer 2 managed access switch with 48 Gigabit RJ-45 ports and four Gigabit SFP uplinks. It runs fanless and silent, and is configured through UniFi Network on desktop or mobile. It sits on a desk or mounts in a rack.
Key Features
- 48 x Gigabit RJ-45 ports
- 4 x Gigabit SFP ports
- Layer 2 managed via UniFi Network
- Fanless, silent
- Desktop or rack mount, 40 W
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-48
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 77.376 Mpps, Non-blocking bandwidth: 52 Gbps
Features: Fanless
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 4 x Gigabit LAN SFP, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 40 watt
Power Provided: 60 watt
Technical Information
Min Operating Temperature: 5 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Link/activity/speed
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 8.8 lbs
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
