Product Information

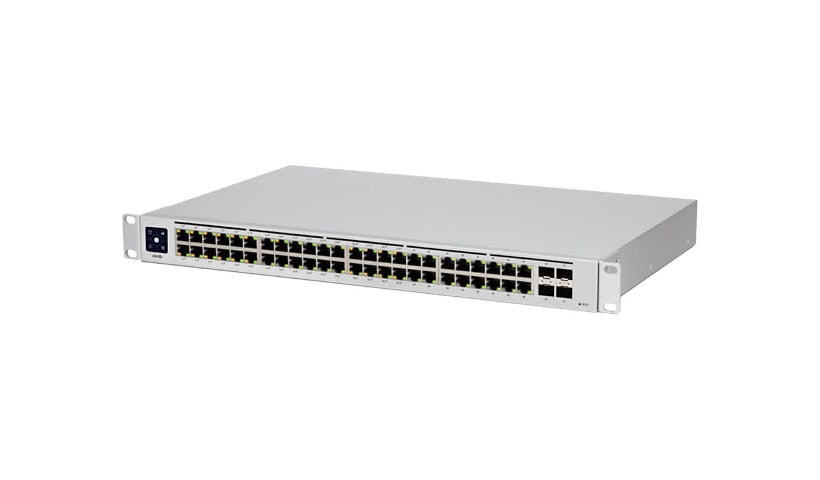

The Ubiquiti UniFi USW-48-POE is a Layer 2 managed switch with 48 Gigabit RJ-45 ports, 32 of them PoE+, and four Gigabit SFP uplinks. It shares a 195 W PoE budget and has a small touchscreen for status. It runs fanless and fits on a desk or in a rack.
Key Features
- 48 x Gigabit RJ-45 ports (32 PoE+)
- 4 x Gigabit SFP ports
- 195 W PoE budget
- Layer 2 managed via UniFi Network
- Fanless, touchscreen status display
- Desktop or rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-48-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Authentication Method: RADIUS
Performance: Forwarding rate: 26.78 Mpps, Non-blocking bandwidth: 18 Gbps, Switching capacity: 36 Gbps
Operating System Required: Apple MacOS, Linux, Microsoft Windows 7 / 8 / 10
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), Aggregation mode, Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Dynamic VLAN Support (GVRP), Fanless, Flow control, Jumbo Frames support, Layer 2 switching, Port mirroring, Storm Control
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (32 PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 16 x 1000Base-T RJ-45, 32 x 1000Base-T RJ-45 PoE+ - 32 W, 4 x Gigabit LAN SFP
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 45 watt
Power Provided: 210 watt
PoE Budget: 195 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Link/activity/speed, PoE
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 9.96 lbs
Certifications and Listing
Compliant Standards: ETSI 300 019-1-4, FCC, IC
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
