Product Information

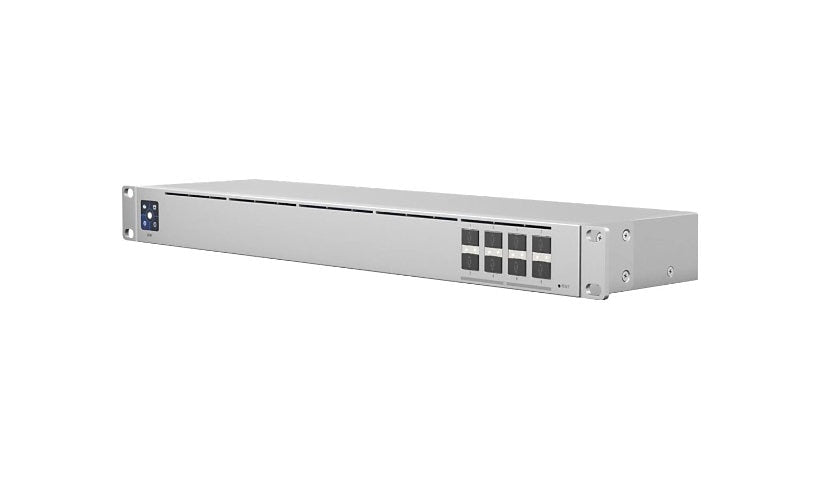

The Ubiquiti UniFi Aggregation switch is a fanless Layer 2 managed switch with eight 10G SFP+ ports for high-bandwidth links between switches. It has a compact 4.7 inch depth, 160 Gbps of switching capacity and supports link aggregation.
Key Features
- 8 x 10G SFP+ ports
- 160 Gbps switching capacity
- Layer 2 managed via UniFi Network
- Link aggregation
- Fanless, 4.7 in depth, rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-Aggregation
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 119.04 Mbps, Non-blocking switching throughput: 80 Gbps, Switching capacity: 160 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), Fanless, Layer 2 switching
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10 Gigabit SFP+
Interface Provided: 8 x 10Gbit LAN SFP+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 30 watt
Power Provided: 36 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Firmware, SFP+, Steady, System
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 4.7 inch
Weight: 5.84 lbs
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
