Product Information

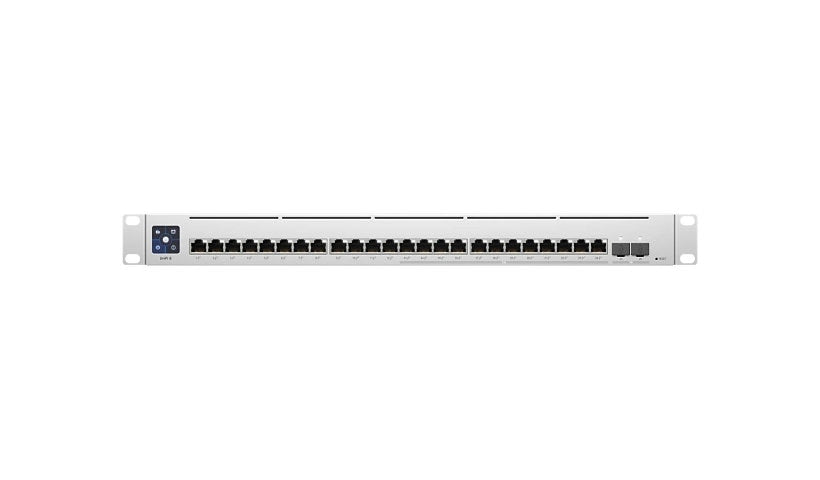

Ubiquiti's UniFi Enterprise 24 PoE is a Layer 3 switch with 12 ports at 2.5GbE and 12 Gigabit ports, all PoE+, plus two 10G SFP+ uplinks. It shares a 400 W PoE budget and has a 1.3 inch touchscreen and a single-row port layout for tidy patching.
Key Features
- 12 x 2.5GbE RJ-45 PoE+ ports
- 12 x 1GbE RJ-45 PoE+ ports
- 2 x 10G SFP+ uplinks
- 400 W PoE budget
- Layer 3 managed, 124 Gbps switching
- Rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-Enterprise-24-PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 2.5 Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 92.25 Mpps, Non-blocking bandwidth: 62 Gbps, Switching capacity: 124 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge)
Connectivity
Ports: 24
Port Quantity: 12
Port Type: 100/1000/2.5G (PoE+)
Ports (2nd) Quantity: 12
Ports Type (2nd): 10/100/1000 (PoE+)
Ports (3rd) Quantity: 2
Interface Provided: 1 x management RJ-45, 12 x 100/1000/2.5G RJ-45 PoE+ - 34.2 W, 12 x 1000Base-T RJ-45 PoE+ - 34.2 W, 2 x 1/10GBase-X SFP+
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10 Gigabit SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Consumption Operational: 550 watt
PoE Budget: 400 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: LAN, SFP+, System
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.8 inch
Weight: 11.27 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
