Product Information

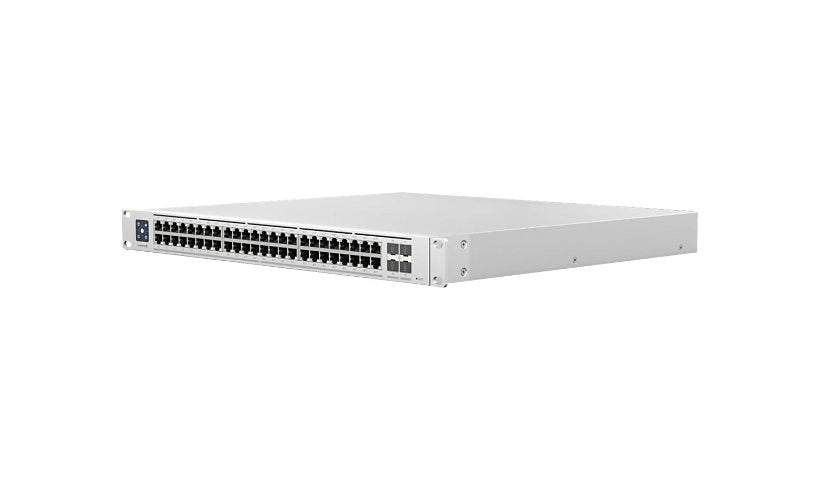

Ubiquiti's UniFi Enterprise 48 PoE is a full Layer 3 switch with 48 RJ-45 ports at 2.5GbE, all PoE+, and four 10G SFP+ uplinks. It provides a 720 W PoE budget and 320 Gbps of switching capacity in a steel 1U housing.
Key Features
- 48 x 2.5GbE RJ-45 PoE+ ports
- 4 x 1/10G SFP+ uplinks
- 720 W PoE budget
- 320 Gbps switching capacity
- Layer 3 managed, link aggregation, port mirroring
- 1U, steel housing
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-Enterprise-48-PoE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 2.5 Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 238.095 Mpps, Non-blocking switching throughput: 160 Gbps, Switching capacity: 320 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), Firmware upgradable, Link Aggregation, Port mirroring, Reset button, Steel housing
Features: Redundant Power System (RPS) connector
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 100/1000/2.5G (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+ (uplink)
Interface Provided: 4 x 1/10Gbit LAN SFP+ uplink, 48 x 100/1000/2.5G RJ-45 PoE+ - 34.2 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 720 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.7 inch
Weight: 13.67 lbs
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
