Product Information

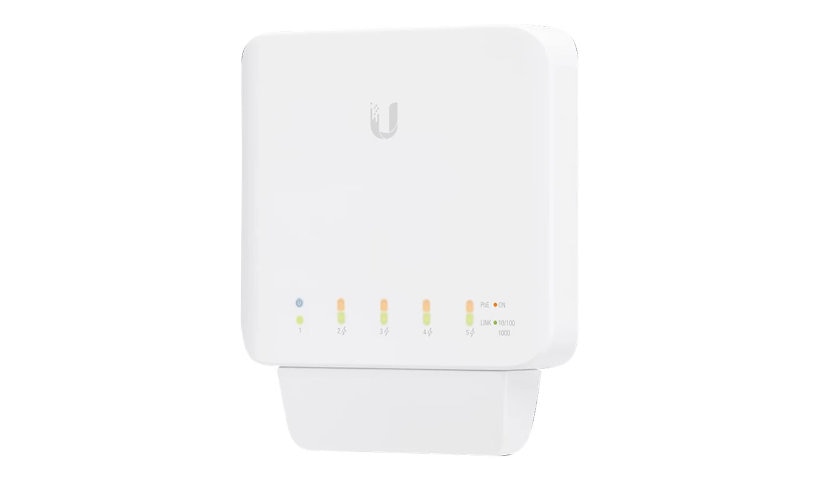

The Ubiquiti UniFi Switch Flex is a weatherproof Layer 2 switch with five Gigabit ports: one PoE input and four PoE outputs at up to 15 W. It runs from -40 to 149 F and mounts on a wall or pole with the included kit, which makes it handy for outdoor cameras and access points.
Key Features
- 1 x Gigabit PoE input port
- 4 x Gigabit PoE output ports (802.3af, 15 W)
- 46 W PoE budget
- Managed: VLAN, port mirroring, DPI
- Weatherproof, -40 to 149 F
- Wall or pole mount, kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-FLEX
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Operating System Required: Apple MacOS, Linux, Microsoft Windows 7 / 8 / 10
Features: Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Port mirroring, VLAN support, Weatherproof
Connectivity
Ports: 5
Port Quantity: 4
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100/1000 (PoE)
Interface Provided: 1 x 1000Base-T RJ-45 PoE input, 4 x 1000Base-T RJ-45 PoE - 15 W
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 5 watt
PoE Budget: 46 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Pole-mountable, Wall-mountable
Status Indicators: Link/activity, PoE, Status
Dimensions and Weight
Height: 4.2 inch
Width: 4.8 inch
Depth: 1.1 inch
Weight: 8.11 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Compliant Standards: CAN ICES-3 Class B, Directive 2012/19/EU, FCC, IC, NMB-3 Class B, RoHS, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
