Product Information

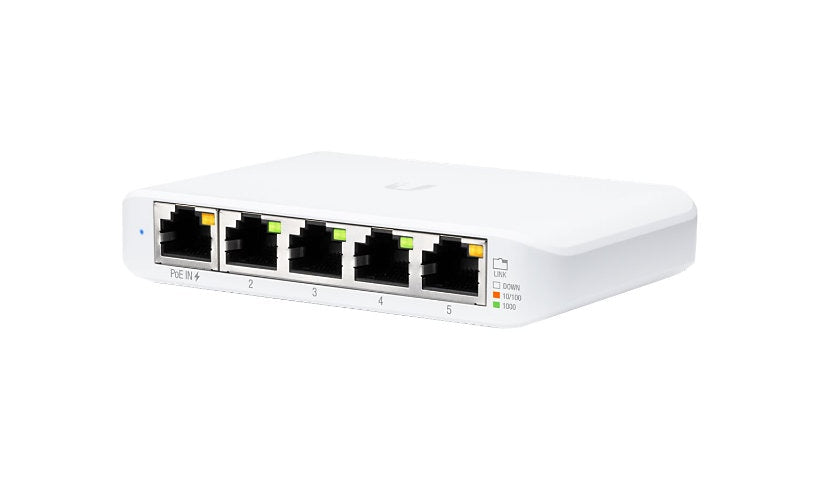

The Ubiquiti UniFi Flex Mini is a tiny smart managed switch with five Gigabit RJ-45 ports. It can be powered over PoE on one port or by USB-C, so it is easy to place on a desk, and it is managed through UniFi Network.
Key Features
- 5 x Gigabit RJ-45 ports (1 PoE input)
- Powered by PoE or USB-C (5 V)
- Smart managed via UniFi Network
- 10 Gbps switching capacity
- Compact desktop design, 2.5 W
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW Flex Mini
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Forwarding performance: 7.44 Mpps, Non-blocking switching throughput: 5 Gbps, Switching capacity: 10 Gbps
Smart: Yes
Connectivity
Ports: 5
Port Quantity: 4
Port Type: 10/100/1000
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100/1000 (PoE+)
Interface Provided: 1 x 1000Base-T RJ-45 PoE input, 1 x USB-C (power only), 4 x 1000Base-T RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Consumption Operational: 2.5 watt
Provided Voltage: 5 volt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Speed, Status
Dimensions and Weight
Height: 0.8 inch
Width: 4.2 inch
Depth: 2.8 inch
Weight: 5.29 ounce
Certifications and Listing
Compliant Standards: ETSI 300 019-1-4, FCC, IC
Compliant Standards: IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
