Product Information

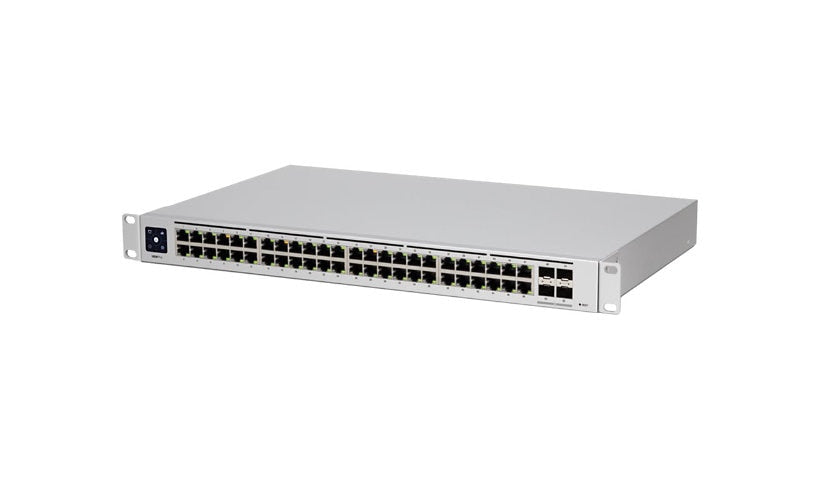

Ubiquiti's Switch Pro 48 (USW-PRO-48) is a Layer 3 managed switch with 48 Gigabit ports and four 10G SFP+ ports. It offers 176 Gbps of switching capacity, inter-VLAN and static routing, a 1.3 inch touchscreen and a DC input for UniFi SmartPower redundant power.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 1/10G SFP+ ports
- 176 Gbps switching, 130.944 Mpps
- Layer 3, static and inter-VLAN routing
- 1.3 inch touchscreen
- SmartPower RPS DC input
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: PRO 48
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Authentication Method: RADIUS
Performance: Forwarding rate: 130.944 Mpps, Non-blocking bandwidth: 88 Gbps, Switching capacity: 176 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), 802.1x authentication, Aggregation mode, Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), DHCP server, Dynamic VLAN Support (GVRP), Fanless, Flow control, Inter-VLAN Routing, Jumbo Frames support, Link Aggregation, Port mirroring, Storm Control
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 1 x management, 4 x 1/10Gbit LAN SFP+, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 60 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Link/activity/speed
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 8.82 lbs
Certifications and Listing
Compliant Standards: ETSI 300 019-1-4, FCC, IC
Compliant Standards: IEEE 802.1x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
