Product Information

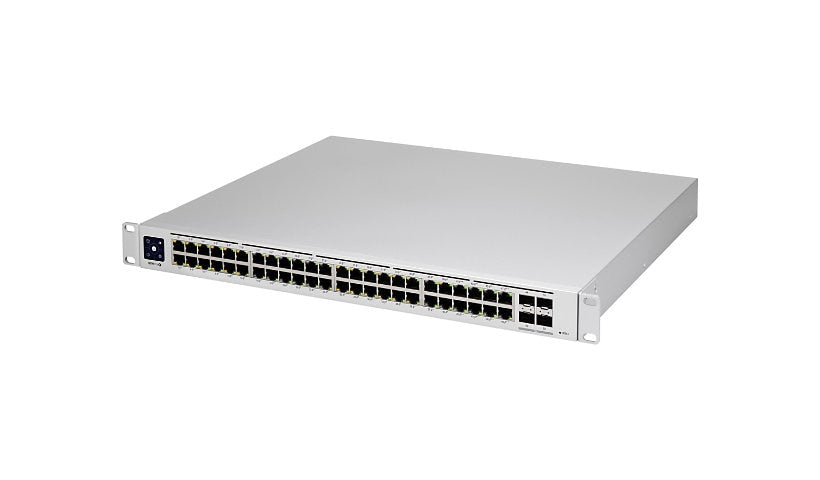

The Ubiquiti UniFi Switch Pro 48 PoE is a managed switch with 48 Gigabit ports, 40 with PoE+ and 8 with PoE++, plus four 10G SFP+ uplinks. It shares a 600 W PoE budget and offers Layer 2 and Layer 3 features such as inter-VLAN routing and a DHCP server. Built-in power management keeps cooling quiet.
Key Features
- 48 x Gigabit RJ-45 ports (40 PoE+, 8 PoE++)
- 4 x 10G SFP+ uplinks
- 600 W PoE budget
- 176 Gbps switching capacity
- L2/L3: inter-VLAN routing, DHCP server
- 1U rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: USW-PRO-48-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Authentication Method: RADIUS
Performance: Forwarding rate: 130.944 Mpps, Non-blocking bandwidth: 88 Gbps, Switching capacity: 176 Gbps
Features: 12KV ESD Protector, Aggregation mode, Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), DHCP server, Dynamic VLAN Support (GVRP), Flow control, Inter-VLAN Routing, Jumbo Frames support, Port mirroring, Storm Control, Switching
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (40 PoE+, 8 PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 1 x management, 4 x 1/10Gbit LAN SFP+, 40 x 1000Base-T RJ-45 PoE+ - 32 W, 8 x 1000Base-T RJ-45 PoE++ - 64 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 60 watt
Power Provided: 600 watt
PoE Budget: 600 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Link/activity/speed, PoE, Status
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 15.7 inch
Weight: 13.78 lbs
Certifications and Listing
Compliant Standards: ETSI 300 019-1-4, FCC, IC
Compliant Standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
