Product Information

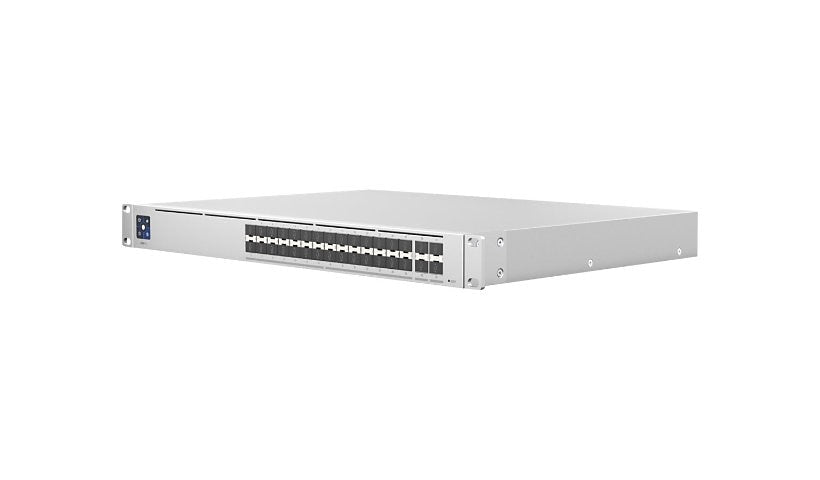

The Ubiquiti UniFi Pro Aggregation is a Layer 3 fiber switch with 28 SFP+ ports at 10G and four SFP28 ports at 25G for uplinks. It offers 760 Gbps of switching capacity with inter-VLAN routing, static routing and a DHCP server.
Key Features
- 28 x 10G SFP+ ports
- 4 x 25G SFP28 uplinks
- 760 Gbps switching, 565 Mpps
- Layer 3: inter-VLAN, static routing, DHCP server
- Rack mount, 100 W
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Pro Aggregation
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: 10 Gigabit Ethernet
Performance: Forwarding rate: 565.44 Mpps, Non-blocking switching throughput: 380 Gbps, Switching capacity: 760 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), DHCP server, Inter-VLAN Routing, Static routing
Connectivity
Port Quantity: 28
Port Type: 10 Gigabit SFP+
Ports (2nd) Quantity: 4
Ports Type (2nd): 25 Gigabit SFP28
Interface Provided: 28 x 10Gbit LAN SFP+, 4 x 25Gbit LAN SFP28
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 100 watt
Power Provided: 100 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.8 inch
Weight: 10.14 lbs
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
