Product Information

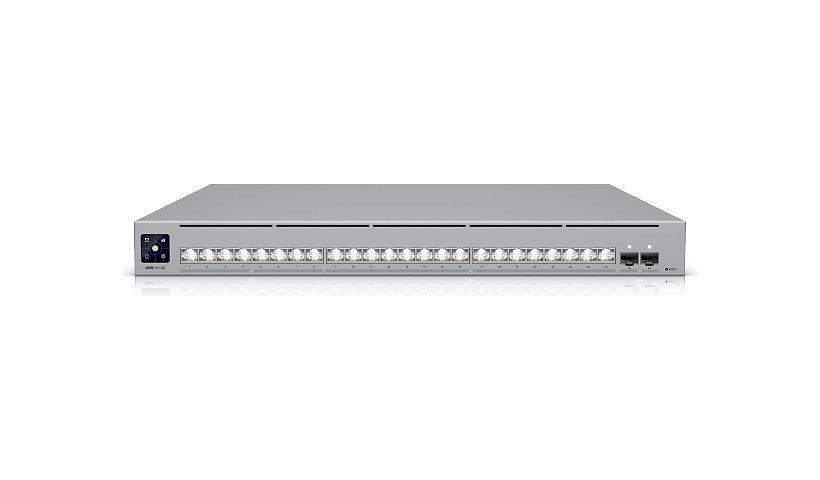

Ubiquiti's Pro XG 24 (USW-PRO-XG-24) is a Layer 3 managed switch with 16 multi-gigabit ports up to 10GbE, eight 2.5GbE ports and two 25G SFP28 ports. It offers 460 Gbps of switching capacity, an 8 MB packet buffer and a 1.3 inch touchscreen for status, and it mounts in a rack.
Key Features
- 16 x 1/2.5/5/10GbE RJ-45 ports
- 8 x 2.5GbE RJ-45 ports
- 2 x 25G SFP28 ports
- 460 Gbps switching, 342 Mpps
- Layer 3, 1.3 inch touchscreen
- Mounting brackets and power cord included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Pro XG 24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet / 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Routing Protocol: RSTP, STP
Performance: Forwarding rate: 342 Mpps, Non-blocking switching throughput: 230 Gbps, Packet buffer size: 8 MB, Switching capacity: 460 Gbps
Capacity: Access lists: 256, ARP entries: 128000, IPv4 routes: 256000, Maximum number of VLANs: 1000
MAC Address Table Size: 128K entries
Features: 20KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge), 802.1x authentication, Advanced IGMP configuration, Device isolation with ACLs, DHCP guardian, DHCP relay, DHCP server, DHCP snooping, Egress rate limit, Etherlighting ports, Flow control, IGMP snooping, Inter-VLAN Routing, IP based access filter, Jumbo Frames support, LACP port aggregation, LED status indicators, LLDP-MED, Loop protection, MAC address authentication, MAC address blocking, Multicast/broadcast rate limiting, Port isolation, Port mirroring, Quality of Service (QoS), Reset button, Safety latch, SGCC steel housing, Static routing, Storm Control, Voice VLAN
Features: DC power backup
Connectivity
Ports: 24
Port Quantity: 8
Port Type: 10/100/1000/2.5G
Ports (2nd) Quantity: 16
Ports Type (2nd): 10/100/1000/2.5G/5G/10G
Ports (3rd) Quantity: 2
Interface Provided: 16 x 10/100/1000/2.5G/5G/10GBase-T RJ-45, 2 x 25Gbit LAN SFP28, 8 x 10/100/1000/2.5G RJ-45
QSFP Slots: 25 Gigabit SFP28
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 200 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Port location, VLAN
Built-in Devices: 1.3" touch screen display
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 18.9 inch
Weight: 15.87 lbs
Included Items
Included Accessories: Mounting brackets, Power cord
Certifications and Listing
Compliant Standards: IEEE 802.1x, IEEE 802.3bt Type 4
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
