Product Information

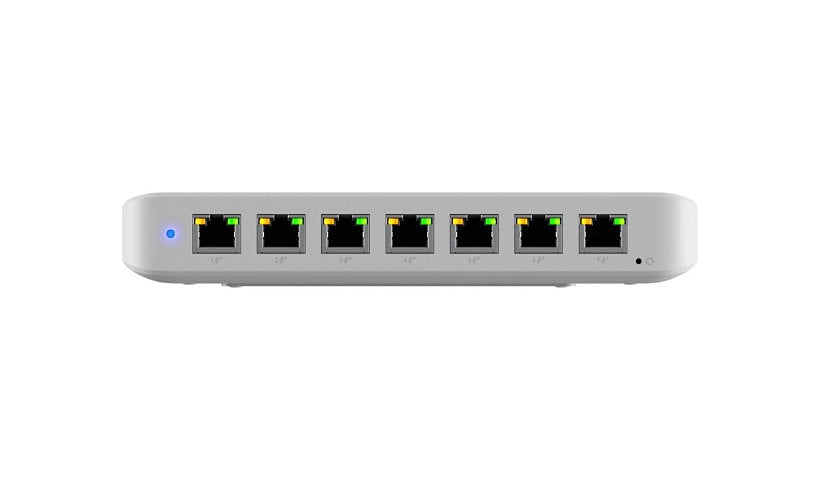

Ubiquiti's Switch Ultra 60W (USW-ULTRA-60W) is a compact managed Layer 2 switch with seven Gigabit PoE+ output ports and one Gigabit PoE++ input port, sharing a 52 W PoE budget. It runs from -22 to 140 F in a polycarbonate housing, and a 60 W AC adapter and wall mount kit are included.
Key Features
- 7 x Gigabit RJ-45 PoE+ output ports, 30 W
- 1 x Gigabit RJ-45 PoE++ input port
- 52 W PoE budget
- 16 Gbps switching capacity
- -22 to 140 F operating range
- 60 W adapter and wall mount kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi Switch
Model: Ultra 60W
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Non-blocking switching throughput: 8 Gbps, Switching capacity: 16 Gbps
Features: Egress rate limiting, Flow control, Jumbo Frames support, Polycarbonate enclosure, Port isolation, Port mirroring, Storm Control
Connectivity
Ports: 8
Port Quantity: 7
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100/1000 (PoE++)
Interface Provided: 1 x 1000Base-T RJ-45 PoE++, 7 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: External power adapter
Power Consumption Operational: 9 watt
Power Provided: 60 watt
PoE Budget: 52 watt
Voltage Required AC/DC: AC
Provided Voltage: 54 volt
Output Current: 1.1 ampere
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, PoE, Status
Dimensions and Weight
Height: 1.3 inch
Width: 8 inch
Depth: 3 inch
Weight: 11.29 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
