Product Information

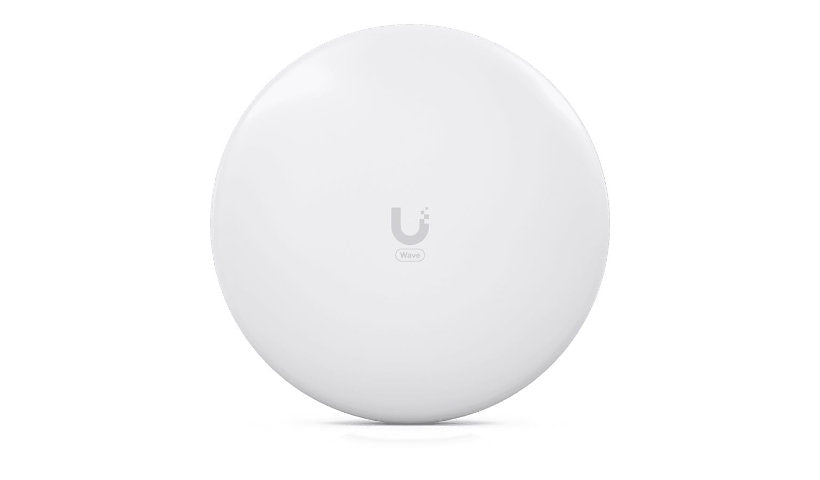

Ubiquiti's UniFi Wave Nano is a 60 GHz point-to-multipoint client radio with Wave technology, a 19 dBi antenna and a 5 GHz backup, reaching about 3 miles. It has a Gigabit PoE port, survives winds up to 200 km/h, is IPX6 and NDAA compliant and works from -40 to 140 °F. This is a PtMP client radio, not an indoor access point.
Key Features
- 60 GHz PtMP client, 5 GHz backup
- 19 dBi dual polarity antenna
- Range up to 3 miles
- Gigabit RJ-45, PoE
- IPX6, -40 to 140 °F
- NDAA compliant
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Wave Nano
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2-PSK
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 5 GHz
Network Device: Channel bandwidth: 20 / 40 / 80 MHz, Throughput: 2 Gbps
Antenna Form Factor: Internal
Antenna Gain Level: 19 DBi
Max Range Open Space: 3 miles
Frequency Band: 60 GHZ
Features: 200 km/h wind survival, Aluminum alloy enclosure, Dual polarization, Linear polarization, Point-to-Multipoint (PtMP) link mode, Reset button, UV stabilized plastic enclosure, Wave Technology
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Power
Required Voltage: 22 - 27 / 44 - 54 volt
Power Consumption Operational: 20 watt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A53
Clock Speed: 1 GHZ
RAM Installed: 512 megabyte
Memory Technology: DDR3L SDRAM
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: Ethernet link/activity, GPS, Power
Built-in Devices: GPS
Dimensions and Weight
Height: 10.1 inch
Width: 10.1 inch
Depth: 4.5 inch
Weight: 32.87 ounce
Certifications and Listing
Compliant Standards: FCC, IC, IPX6, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
