Product Information

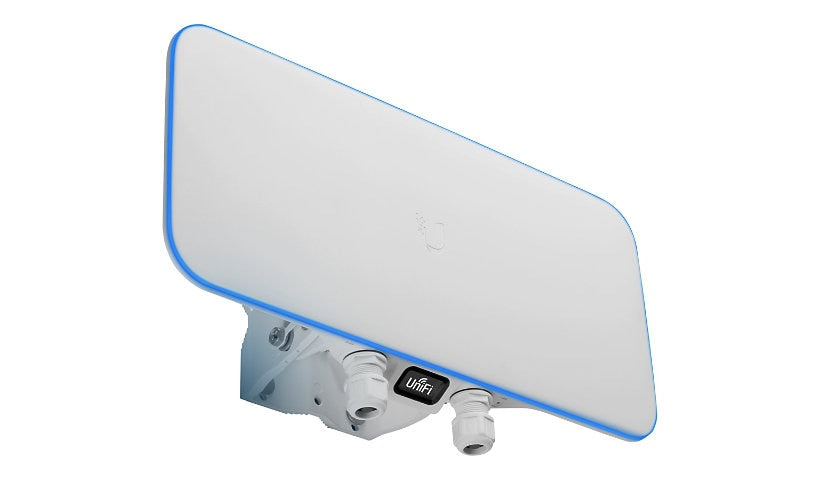

The UniFi WiFi BaseStation XG is an outdoor 802.11ac Wave 2 base station with 4x4 MU-MIMO, beamforming and a dedicated security and monitoring radio, built for high density deployments. It has a 10G and a Gigabit RJ-45 port, is PoE powered, draws about 31 W and can be wall or pole mounted.
Key Features
- Wi-Fi 5 Wave 2, 4x4 MU-MIMO
- Dedicated security / airView radio
- 10G + 1G RJ-45 ports
- PoE powered, about 31 W
- Weatherproof, wall or pole
- 14 to 158 °F
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: WiFi BaseStationXG
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2
Capacity: Number of concurrent clients: 1500
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 5 GHz
Antenna Form Factor: Internal
Features: 4x4 MU-MIMO technology, airView, Beamforming technology, Pole mountable, Quality of Service (QoS), Reset button, Uplink, VLAN support, Wall mountable, Weatherproof, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 1Gb Ethernet/10Gb Ethernet - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 31 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor, Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 10.1 inch
Width: 18.5 inch
Depth: 3.7 inch
Weight: 7.05 lbs
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
