Product Information

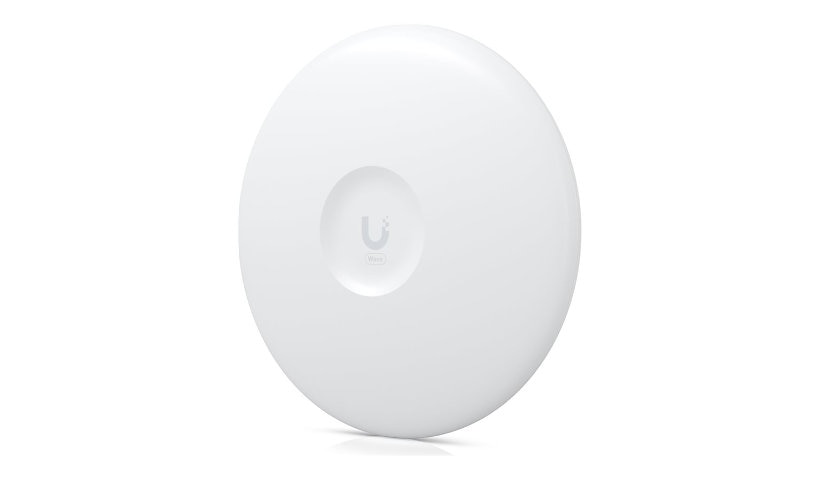

The Ubiquiti Wave Pro is a high capacity 60 GHz radio for point to point and point to multipoint links, not a standalone antenna, with a 46 dBi integrated antenna and up to 5.4 Gbps total throughput. The spec lists 9 miles of open space range and the description 15 km. It has a 5 GHz weatherproof backup radio, GPS, Bluetooth, a quad core ARM Cortex-A53 at 1.4 GHz and 512 MB DDR3L. Ports are one 10G SFP+ and two 2.5 GbE RJ-45, with passive PoE at 22 to 27 or 44 to 54 V DC and about 26 W maximum. It has a UV stabilized enclosure, survives 200 km/h winds and is managed through UISP.
Key Features
- 60 GHz radio, not an antenna
- 46 dBi, up to 5.4 Gbps
- 5 GHz backup radio
- 10G SFP+, 2 x 2.5 GbE
- GPS and Bluetooth
- UISP managed
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Wave Pro
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, WPA2-PSK
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 60 GHz
Network Device: Throughput: 5.4 Gbps
Antenna Form Factor: Internal
Antenna Gain Level: 46 DBi
Max Range Open Space: 9 miles
Features: 200 km/h wind survival, 2x2 MIMO technology, Aluminum alloy enclosure, Cable test, LED status indicator, Linear polarization, NTP client, Ping watchdog, Point-to-Multipoint (PtMP) link mode, Point-to-Point (PtP) link mode, Reset button, SNMP support, Ubiquiti Discovery Protocol, UISP dashboard, UV resistant casing, UV stabilized polycarbonate enclosure, Vertical polarization, Wave AI, Wave Technology, Weatherproof
Connectivity
Interface Provided: 1 x 10GBase-X - SFP+, 2 x 2.5 GBase-T - RJ-45
Power Over Ethernet (PoE): Passive PoE
Power
Required Voltage: DC 22 - 27 / 44 - 54 volt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A53
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 512 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: Ethernet link/activity, GPS, Power, SFP+
Dimensions and Weight
Height: 16.7 inch
Width: 16.7 inch
Depth: 6.5 inch
Weight: 6.17 lbs
Certifications and Listing
Compliant Standards #2: FCC, IC, IPX6, NDAA
Compliant Standards: IEEE 802.11ax
Compliant Standards: FCC, IC, IPX6, NDAA
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
